Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Stornello ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

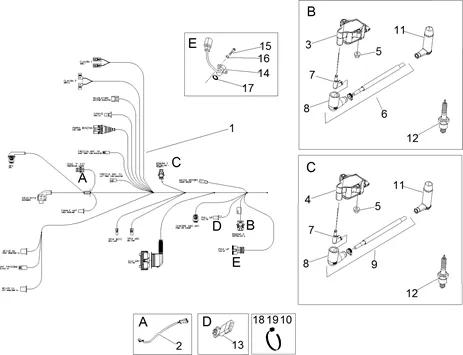

Chassis : 33.30 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/759/V7_II_Stornello_ABS_2016_33.30.PNG)
1 |
2D000108-CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
2 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
|
3 |
642034-BOBINE H. T. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
4 |
BOBINE IGNITION OEM PIAGGIO 125 FLY3 SOUPAPES, LIBERTY 3 SOUPAPES, VESPA LX 3 SOUPAPES, 125-350 YOURBAN, BEVERLY, X-10, V7, V9, V85 2017 >-641901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
5 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
||||||
|
6 |
CABLE HT L = 470 OEM MOTO GUZZI V7 2012 > 2016-2D000207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/2/img/67942.jpg)
7 |
INSERT ANTIPARASITE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-1A024520 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
8 |
ISOLANT BOBINE HAUTE TENSION OEM PIAGGIO COMMON A LA RANGE-641040 More informationQuantity required : 2 |
||||||
|
9 |
CABLE HT L = 580 OEM MOTO GUZZI V7 2012 > 2016-2D000206 More informationQuantity required : 1 |
||||||
|
10 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 31 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/7/6/img/127176.jpg)
11 |
ANTIPARASITE OEM MOTO GUZZI COMMON A LA RANGE-2D000247 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/1/6/img/99416.jpg)
12 |
SPARK PLUG CPR8EB-9 OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 >, V7 2017 >, V9 2016 >-887481 More informationQuantity required : 2 |
||||||
|
13 |
887948 - RESISTENZA-DIODO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
14 |
SENSOR IGNITION/PHASE TOURS OEM PIAGGIO 400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP-6389915 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
15 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
16 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
17 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
18 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
|
19 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
