Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Stornello ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

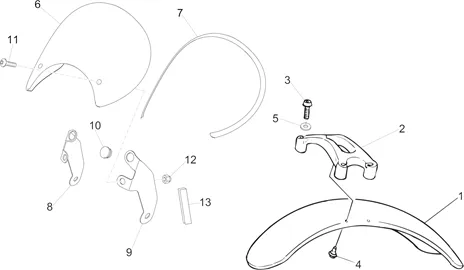

Chassis : 33.13 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/759/V7_II_Stornello_ABS_2016_33.13.PNG)
1 |
2S000236-GUARD-MUD More informationQuantity required : 1 |
||||||
|
2 |
8832666-* PLATE STABILIZZATRICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/8/2/img/85482.jpg)
3 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995 More informationQuantity required : 4 |
||||||
|
4 |
GU31439565 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
5 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 4 |
||||||
|
6 |
2S000234-COVER More informationQuantity required : 1 |
||||||
|
7 |
AP8144606-GUARNIZIONE IN GOMMA 10X5 More informationQuantity required : 1 |
||||||
|
8 |
2B003267 - SUPPORT More informationQuantity required : 1 |
||||||
|
9 |
2B003268 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/1/img/132571.jpg)
10 |
CAP/COVER OEM MOTO GUZZI COMMON A LA RANGE-GU93180105 More informationQuantity required : 2 |
||||||
|
11 |
884029-SCREW TBEI M6X10 PREIMPREGNATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
|
13 |
AP8144606-GUARNIZIONE IN GOMMA 10X5 More informationQuantity required : 1 |
