Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Stornello ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

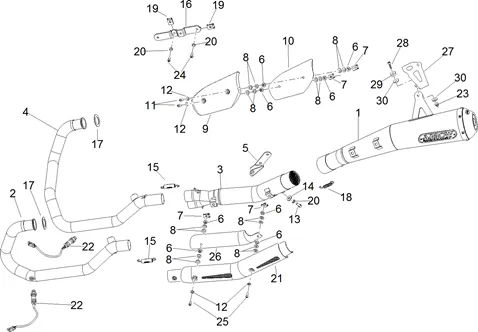

Chassis : 33.23 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/759/V7_II_Stornello_ABS_2016_33.23.PNG)
1 |
2B003391-SILENCER More informationQuantity required : 1 |
||||||
|
2 |
2B003393-MANIFOLD ECHAPP. G. More informationQuantity required : 1 |
||||||
|
3 |
2B003394-MANIFOLD More informationQuantity required : 1 |
||||||
|
4 |
2B003392 - COLLECTEUR ECHAPP. D. More informationQuantity required : 1 |
||||||
|
5 |
2S000430-BRACKET More informationQuantity required : 1 |
||||||
|
6 |
2S000436-BUSH More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
|
8 |
2S000437-WASHER More informationQuantity required : 16 |
||||||
|
9 |
2S000435-PROTECTOR PROTECTOR-CHALEUR More informationQuantity required : 1 |
||||||
|
10 |
2S000434-PROTECTOR PROTECTOR-CHALEUR More informationQuantity required : 1 |
||||||
|
11 |
GU98370520-SCREW 5 MM More informationQuantity required : 2 |
||||||
|
12 |
658816 WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
13 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 1 |
||||||
|
14 |
GU91120620-SPACER More informationQuantity required : 1 |
||||||
|
15 |
2S000438-SPRING More informationQuantity required : 2 |
||||||
|
16 |
2S000431-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
17 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65-GU19025280 More informationQuantity required : 2 |
||||||
|
18 |
855997-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
20 |
658818 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/1/7/7/img/141177.jpg)
21 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO MOTO-GUZZI V7 STORNELLO 2016-2S000433 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/6/img/70836.jpg)
22 |
SONDE LAMDA OEM PIAGGIO APRILIA 750 SHIVER 2007 >, DORSODURO 2008 >, 1200 CAPONORD 2014 >, DORSODURO 2010 >/MOTO-GUZZI 750 V7 2012 >, NEVADA 2012 >, 850 V9 2016 >, 1200 STELVIO 2011 >-896110 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
23 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
||||||
|
24 |
GU98370619-SCREW More informationQuantity required : 2 |
||||||
|
25 |
GU98370520-SCREW 5 MM More informationQuantity required : 2 |
||||||
|
26 |
2S000432-PROTECTOR PROTECTOR-CHALEUR More informationQuantity required : 1 |
||||||
|
27 |
2S000440-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/8/0/img/73580.jpg)
28 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98692420 More informationQuantity required : 1 |
||||||
|
29 |
2S000216-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/0/img/72040.jpg)
30 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8163165 More informationQuantity required : 2 |
