Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special ABS 750 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

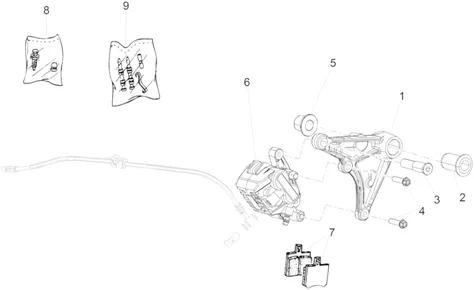

Chassis : 33.27 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/533/V7_II_Special_ABS_750_2015_33.27.PNG)
1 |
2B000229-PLATE BRACKET PINZA POST More informationQuantity required : 1 |
|||||||||
|
2 |
GU31634281-BUSH More informationQuantity required : 1 |
|||||||||
|
3 |
GU31544181-PIVOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
4 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
|||||||||
|
5 |
GU32634160-SPACER More informationQuantity required : 4 |
|||||||||
|
6 |
2B000525 - PINZA FRENO POST More informationQuantity required : 1 |
|||||||||
|
6 |
2B013282-PINCE BRAKE REAR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/9/8/4/4/img/219844.JPG)
7 |
BRAKE PAD OEM PIAGGIO MOTO-GUZZI 750 V7 2017 > AR, V9 2016 > AR, V85 2019 > AR (PAIRE)-2B014446 More informationQuantity required : 1 |
|||||||||
|
7 |
BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 RACER 2015> AR, V9 2016> AR (PAIR) -2R000248 More informationQuantity required : 1 |
|||||||||
|
8 |
GU31659281-PURGE + CAPUCHON More informationQuantity required : 1 |
|||||||||
|
9 |
GU31659181-KIT PLAQUETTES More informationQuantity required : 1 |
|||||||||
