Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special ABS 750 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

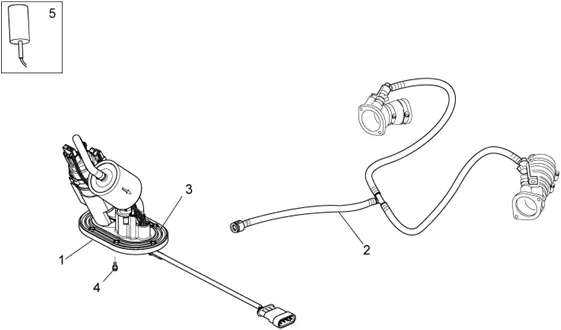

Chassis : 33.21 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/533/V7_II_Special_ABS_750_2015_33.21.PNG)
Search
1 |
B063752-PUMP CARBURANTE * More informationQuantity required : 1 |
||||||
|
2 |
2B001342-TUBI ALIMENTAZIONE BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/2/9/img/73429.jpg)
3 |
GASKET OF FUEL PUMP OEM PIAGGIO MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-GU05107430 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
4 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 6 |
||||||
|
5 |
887787-SENSORE LIVELLO A NTC NEVADA More informationQuantity required : 1 |
