Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special ABS 750 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

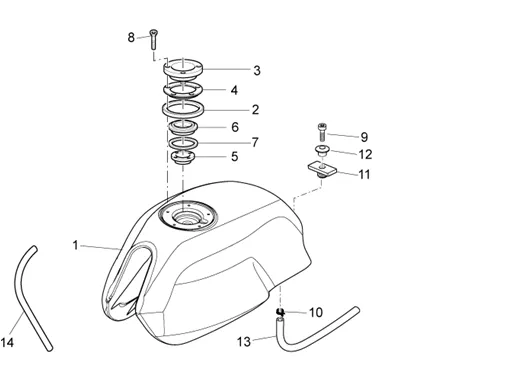

Chassis : 33.12 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/533/V7_II_Special_ABS_750_2015_33.12.PNG)
1 |
2H000664000YA4-TANK ESS. More informationQuantity required : 1 |
||||||
|
1 |
2H000664000YR6-TANK ESS. More informationQuantity required : 1 |
||||||
|
1 |
887207 - SERBATOIO V7 LAMIERA More informationQuantity required : 1 |
||||||
|
1 |
2H000019000XN2 - SERBATOIO NERO V7 MY13 More informationQuantity required : 1 |
||||||
|
1 |
2H000020000XN2-TANK NERO V7 MY13 USA More informationQuantity required : 1 |
||||||
|
1 |
2H000663000YA4-TANK BENZ. AZZURRO.'15 More informationQuantity required : 1 |
||||||
|
1 |
2H000663000YR6 - SERBATOIO BENZ. ROSSO DAYTONA '15 More informationQuantity required : 1 |
||||||
|
2 |
GU03102400-GUARNIZIONE FLANGIA More informationQuantity required : 1 |
||||||
|
3 |
GU03101900-FLANGIA More informationQuantity required : 1 |
||||||
|
4 |
GU03103500-ANELLO More informationQuantity required : 1 |
||||||
|
5 |
883502-RIDUZIONE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/4/0/img/102440.jpg)
5 |
REDUCTION DE TANK (38) OEM MOTO GUZZI BELLAGIO, V7, NEVADA 2016 <-GU03101720 More informationQuantity required : 1 |
||||||
|
6 |
GU03102200-GHIERA CAP More informationQuantity required : 1 |
||||||
|
7 |
GU03101600-GUARNIZIONE More informationQuantity required : 2 |
||||||
|
8 |
SCREW BTR HEAD BOMBE (5X12) OEM PIAGGIO COMMON A LA RANGE-GU03103200 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
9 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
10 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
11 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
12 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
13 |
GU00823944050-TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
14 |
2B000909-GASKET More informationQuantity required : 1 |
