Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

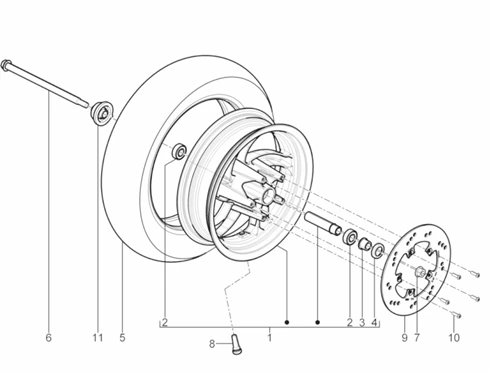

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/114/Typhoon_50_2T_E2_2010-2012_04.11.PNG)
1 |
666002 - JANTE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
2 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
|
3 |
564527 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
4 |
564475 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
|
5 |
666005 - PNEU 120/80-12" 55J AVANT (MAXXIS) More informationQuantity required : 1 |
||||||
|
5 |
666719 - PNEU 120/80-12" VEE RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/4/img/90444.jpg)
6 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50-125 FLY 2012>, TYPHOON 2010>/APRILIA 50 SR MOTARD 2010>, SPORT-CITY ONE -668796 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
8 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/0/9/8/img/90098.jpg)
9 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50-125 FLY 2012>, 50-125 TYPHOON 2012> -666761 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
10 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/1/img/67051.jpg)
11 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2011/APRILIA 50 SR MOTARD 2011, 50-125 SPORT-CITY ONE 2008> -56434R More informationQuantity required : 1 |
