Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

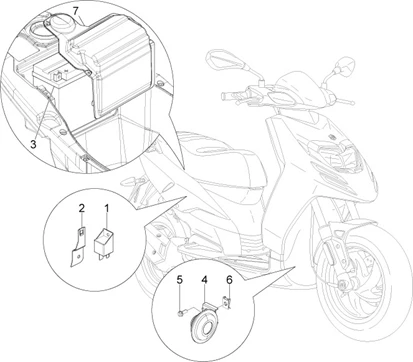

Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/114/Typhoon_50_2T_E2_2010-2012_06.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
1 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/7/4/img/67974.jpg)
1 |
RELAY 12V-80A FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, ZIP 4 STROKE, TYPHOON 2 STROKE+4 STROKE 2011>/APRILIA 50 SR MOTARD 2 STROKE+4 STROKE 2011> -642318 More informationQuantity required : 1 |
||||||
2 |
582042 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
3 |
BATTERY YUASA 12V/9AH YB9-B "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY -584810 More informationQuantity required : 1 |
||||||
|
4 |
58093R - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
5 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
5 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
|
7 |
852990 - COUVERCLE BATTERIE More informationQuantity required : 1 |
