Vehicle Exploded View - PIAGGIO TYPHOON 50 2T E2 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

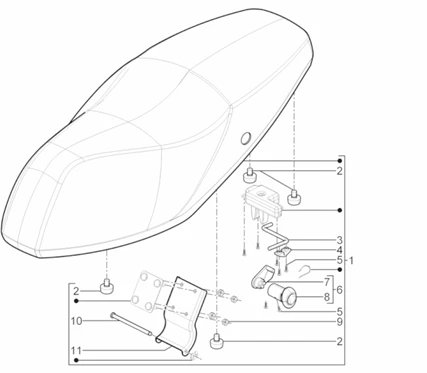

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/114/Typhoon_50_2T_E2_2010-2012_02.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/7/4/img/75774.jpg)
1 |
SADDLE- "PIAGGIO GENUINE PART" 50 TYPHOON 2010>2017 BLACK -1B001002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/3/7/img/69737.jpg)
3 |
856462 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
4 |
296743 - PONTET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
5 |
268596 - VIS More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/0/img/68460.jpg)
6 |
SADDLE LOCK HARDWARE KIT "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> -672327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/3/8/img/69738.jpg)
7 |
SADDLE LOCK LEVER "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010> -856463 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/8/8/img/68188.jpg)
8 |
SADDLE LOCK BODY "PIAGGIO GENUINE PART" 50-125 FLY 2005>, TYPHOON 2011>/APRILIA 50-125 SR MOTARD 2011> -652695 More informationQuantity required : 1 |
||||||
9 |
269136 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
856466 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
11 |
856465 - CHARNIERE SELLE More informationQuantity required : 1 |
