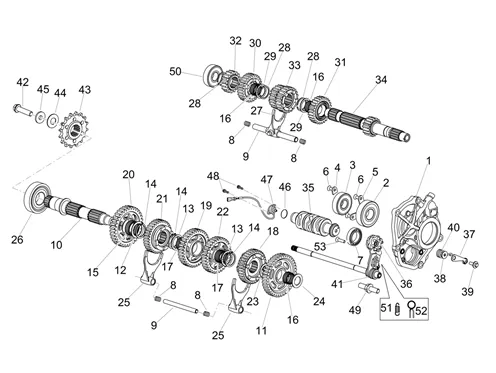

Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2020 (EMEA)

	P2R reference	37637
	Maker reference	2A000069

2A000069-COVER TRANSMISSION

	P2R reference	43016
	Maker reference	898634

BEARING (25X62X17) OEM PIAGGIO COMMON A LA RANGE-898634

	P2R reference	43017
	Maker reference	898635

BEARING (20X52X15) OEM PIAGGIO COMMON A LA RANGE-898635

	P2R reference	97672
	Maker reference	AP9150145

AP9150145-PIASTRINA RIT. CUSCIN. L

	P2R reference	40363
	Maker reference	857271

857271-PLATE

	P2R reference	71923
	Maker reference	AP8152166

SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152166

	P2R reference	69754
	Maker reference	857250

BEARING (25X42X9) OEM PIAGGIO COMMON A LA RANGE-857250

	P2R reference	40326
	Maker reference	857175

SPRING BOX OF SPEED OEM APRILIA 1000-1100 RSV4-857175

	P2R reference	40367
	Maker reference	857284

857284-ROD

	P2R reference	40346
	Maker reference	857236

SHAFT SECONDAIRE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-857237

	P2R reference	145551
	Maker reference	2A000889

2A000889-GEAR

	P2R reference	40379
	Maker reference	857308

857308-WASHER 30X40X1, 5

	P2R reference	40356
	Maker reference	857247

WASHER APPUI SHAFT SECONDAIRE BOX OF SPEED OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-857247

	P2R reference	40357
	Maker reference	857248

CLIPS/CIRCLIPS BOX OF SPEED (D30) OEM APRILIA RSV4 2011 >-857248

	P2R reference	40380
	Maker reference	857309

ROLLER CAGE SHAFT DECONDAIRE (30X35X13) OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO-857309

	P2R reference	40344
	Maker reference	857233

CAGE A AIGUILLES SHAFT SECONDAIRE (24X28X13) OEM PIAGGIO APRILIA 1000-1100 RSV4, TUONO V4-857233

	P2R reference	40353
	Maker reference	857244

ROLLER CAGE SHAFT DECONDAIRE (26X30X15, 6) OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO-857244

	P2R reference	145552
	Maker reference	2A000890

2A000890-GEAR

	P2R reference	40349
	Maker reference	857239

GEAR 3EME ON SHAFT SECONDAIRE (34 DTS) OEM PIAGGIO APRILIA 1000 RSV-4 2009 > 2010, TUONO V4 2011 > 2015, 1100 TUONO 2015 > X000D-857239

	P2R reference	40348
	Maker reference	857238

GEAR 2EME ON SHAFT SECONDAIRE OEM PIAGGIO APRILIA 1000 RSV-4 2009 > 2010, TUONO V4 2011 > 2012, 1100 TUONO 2015 >-857238

	P2R reference	40352
	Maker reference	857242

GEAR 6EME (Z33), ON SHAFT SECONDAIRE OEM PIAGGIO APRILIA 1000 RSV-4 2009 > 2015, TUONO V4 2009 > 2015, 1100 RSV-4 2019 >, TUONO 2015 >-857242

	P2R reference	40350
	Maker reference	857240

GEAR 4EME ON SHAFT SECONDAIRE OEM PIAGGIO APRILIA 1000 RSV-4 2009 > 2010, TUONO V4 2011 > 2015, 1100 TUONO 2015 >-857240

	P2R reference	40355
	Maker reference	857246

WASHER (24X35X1) BOX OF SPEED OEM APRILIA 1000-1100 RSV 2009 >-857246

	P2R reference	40354
	Maker reference	857245

857245-WASHER

	P2R reference	39580
	Maker reference	85253R

FOURCHETTE SHAFT SECONDAIRE BOX OF SPEED OEM PIAGGIO APRILIA 1000 RSV-4 2009 > 2015, TUONO V4 2011 > 2015, 1100 TUONO 2015 >-85253R

	P2R reference	43015
	Maker reference	898633

BEARING (30X72X19) DE BOX OF SPEED OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-898633

	P2R reference	39579
	Maker reference	85252R

FOURCHETTE 4EME/5EME ON SHAFT PRIMAIRE BOX OF VITESSES OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1000 TUONO 2011 >, 1100 TUONO 2015 >-85252R

	P2R reference	40343
	Maker reference	857232

WASHER/ANNEAU FOR SHAFT BOX OF SPEED OEM APRILIA 1000-1100 RSV4 2011 >-857232

	P2R reference	40345
	Maker reference	857234

WASHER APPUI SHAFT PRIMAIRE BOX OF SPEED OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-857234

	P2R reference	40342
	Maker reference	857231

GEAR 6EME ON SHAFT PRIMAIRE OEM PIAGGIO APRILIA 1000 RSV-4 2009 >, 1100 RSV-4 2019 >, 1000 TUONO 2011 >, 1100 TUONO 2015 >-857231

	P2R reference	40341
	Maker reference	857230

GEAR 5EME ON SHAFT PRIMAIRE OEM PIAGGIO APRILIA 1000 RSV-4 2009 >, 1000 TUONO 2011 >, 1100 RSV-4 2019 >, 1100 TUONO 2015 >-857230

	P2R reference	40395
	Maker reference	857459

857459-GEAR 2

	P2R reference	40340
	Maker reference	857229

GEAR/SPROCKET 4E-5E ON SHAFT PRIMAIRE (20-22) OEM PIAGGIO APRILIA 1000 RSV-4 2011 > 2010, TUONO V4 2011 > 2013, 1100 TUONO 2015 >-857229

	P2R reference	40394
	Maker reference	857458

857458-SHAFT PRIMAIRE

	P2R reference	40359
	Maker reference	857251

857251-TAMBOUR

	P2R reference	40308
	Maker reference	857123

857123 - ETOILE

	P2R reference	40365
	Maker reference	857274

857274-LEVER

	P2R reference	97623
	Maker reference	AP9150051

AP9150051-RONDELLA RASAM. D6. 2-D

	P2R reference	97607
	Maker reference	AP9150006

AP9150006-SCREW CON BOCCOLA M6X1

	P2R reference	37635
	Maker reference	2A000048

2A000048-SPRING INDEX

	P2R reference	40360
	Maker reference	857253

SPINDLE CHANGEMENT DE VITESSES OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-857253

	P2R reference	71965
	Maker reference	AP8152318

SCREW FLANGE TH (10X35) OEM PIAGGIO COMMON A LA RANGE-AP8152318

	P2R reference	108653
	Maker reference	2B001710

SPROCKET 15 TEETH OEM APRILIA 1100 TUONO 2015 >-2B001710

	P2R reference	39908
	Maker reference	854909

WASHER SPRING 16X34X1. 5) OEM PIAGGIO COMMON A LA RANGE-854909

	P2R reference	39914
	Maker reference	854951

BUSH EN T MOUNTING SPROCKET OEM APRILIA 1000-1100 RSV, TUONO 2011 >-854951

	P2R reference	69759
	Maker reference	857494

O-RING SENSOR OF POSITION DE BOX OEM APRILIA 660 RS, TUONO, TUAREG 2020 >/1000-1100 RSV4 2017 >/MOTO GUZZI V85, V100 2021 > 857494

	P2R reference	145833
	Maker reference	2D000300
	Replaced by référence 172929

2D000300 - DETECTEUR

	P2R reference	71939
	Maker reference	AP8152273

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

	P2R reference	43237
	Maker reference	899599

899599-SCREW

	P2R reference	43018
	Maker reference	898636

898636-BEARING 20X52X15

	P2R reference	40362
	Maker reference	857260

SPRING ACCROCHAGE BOX OF SPEED OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO-857260

	P2R reference	37634
	Maker reference	2A000047

SPRING BOX OF SPEED OEM APRILIA 1000-1100 RSV4 2009 >-2A000047

	P2R reference	164303
	Maker reference	1A011247

1A011247-SCREW
