Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

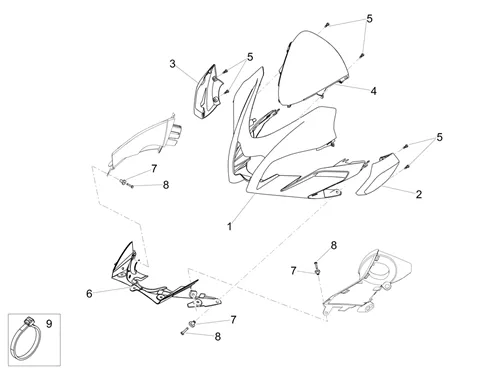

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/928/Tuono_V4_Factory_1100_E4_Superpole_ABS_2020_(EMEA)_02.04.png)
1 |
2H003731000NV-FRONT FAIRING, BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/5/5/img/108655.jpg)
2 |
SIDE PANEL LEFT DE HEADLAMP OEM APRILIA 125-1100 TUONO 2015 > 2020-2B001755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/5/4/img/108654.jpg)
3 |
SIDE PANEL RIGHT DE HEADLAMP OEM APRILIA 125-1100 TUONO 2015 > 2020-2B001754 More informationQuantity required : 1 |
||||||
|
4 |
2H003729-VITRE COUPOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
5 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
|
6 |
2B003718-LATCH INF. FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
7 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
8 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 9 |
||||||
|
9 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 4 |
