Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

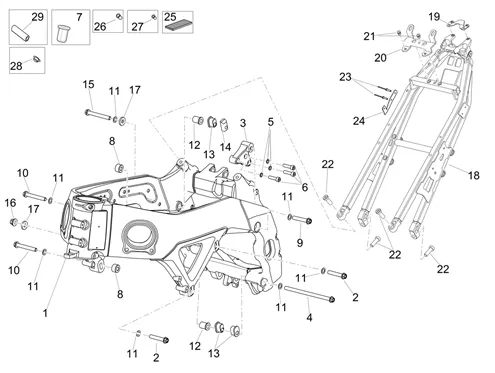

Chassis : 01.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/928/Tuono_V4_Factory_1100_E4_Superpole_ABS_2020_(EMEA)_01.01.png)
1 |
89696235 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/4/img/67364.jpg)
2 |
SCREW FLANGE TH (10X50) OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 2 |
||||||
|
3 |
898429-MOUNTING More informationQuantity required : 1 |
||||||
|
4 |
858712-PIVOT More informationQuantity required : 1 |
||||||
|
5 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
6 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
7 |
INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902 More informationQuantity required : 4 |
||||||
|
8 |
858718-SPACER More informationQuantity required : 2 |
||||||
|
9 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/7/6/img/42376.jpg)
10 |
SCREW FLANGE TH (10X65) OEM PIAGGIO COMMON A LA RANGE-895845 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
11 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 7 |
||||||
|
12 |
858710-BUSH DE REGLAGE More informationQuantity required : 2 |
||||||
|
13 |
898427-INSERT More informationQuantity required : 3 |
||||||
|
14 |
898428-INSERT More informationQuantity required : 1 |
||||||
|
15 |
AP8152398-SCREW FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/1/8/img/51018.jpg)
17 |
WASHER PLATE (10, 5X25X4) OEM PIAGGIO COMMON A LA RANGE-AP8152441 More informationQuantity required : 2 |
||||||
|
18 |
2B003589-FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/4/0/img/40640.jpg)
19 |
BRACKET/CALIPER DOOR LAMP DE FRAME REAR OEM PIAGGIO APRILIA 50-125 RS 2011 >-858903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/4/1/img/40641.jpg)
20 |
BRACKET/CALIPER DE FRAME REAR OEM PIAGGIO APRILIA 1000-1100 RSV-4 2020 <-858904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
21 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/7/img/50887.jpg)
22 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469 More informationQuantity required : 4 |
||||||
|
23 |
AP8102029-RIVET A DECLIC More informationQuantity required : 1 |
||||||
|
24 |
2B006016-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
25 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
26 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 4 |
||||||
|
27 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8104390 More informationQuantity required : 6 |
||||||
|
28 |
AP8220323 - BOUCHON More informationQuantity required : 1 |
||||||
|
29 |
AP8144707-GUARNIZIONE TELAIO More informationQuantity required : 1 |
