Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

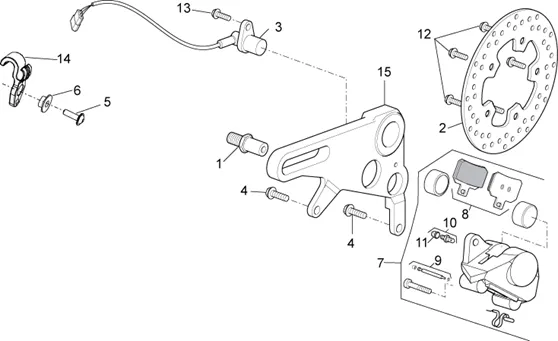

Chassis : 28.30 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/585/Tuono_V4_1100_RR_2015_28.30.PNG)
1 |
898486 - PIVOT More informationQuantity required : 1 |
|||||||||
|
1 |
2B004790-PIVOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/7/5/img/39575.jpg)
2 |
BRAKE DISC REAR OEM APRILIA 1000 RSV-4, TUONO V4, RS660-85248R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
3 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
|
3 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
4 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/9/img/72319.jpg)
6 |
WASHER EN T (6X17X6) OEM PIAGGIO COMMON A LA RANGE-AP8221349 More informationQuantity required : 1 |
|||||||||
|
7 |
PINCE/BRAKE CALIPER REAR OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-B045137 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/9/9/img/42099.jpg)
8 |
BRAKE PADS REAR OEM PIAGGIO FOR APRILIA 1000 RSV-4, TUONO, 1100 TUONO, 660 RS 2020 >, 660 TUONO 2020 >-893969 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/1/img/71321.jpg)
9 |
SPINDLE + GOUPILLE BRAKE CALIPER REAR OEM APRILIA COMMON A LA RANGE-AP8113752 More informationQuantity required : 1 |
|||||||||
|
10 |
AP8113753-PURGE AIR More informationQuantity required : 1 |
|||||||||
|
11 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 1 |
|||||||||
|
12 |
894505 - VIS BRIDE More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
|||||||||
|
14 |
858791-PROTECTOR HOSE BRAKE REAR More informationQuantity required : 1 |
|||||||||
|
15 |
896896-BRACKET More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
