Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

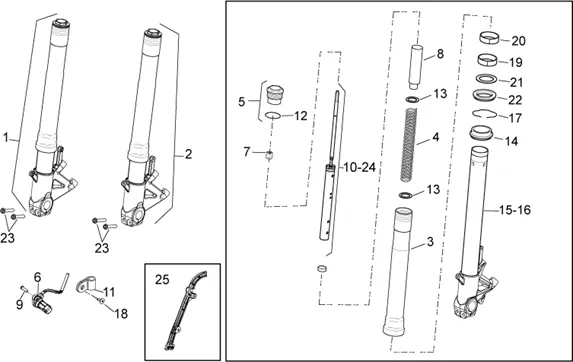

Chassis : 28.06 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/585/Tuono_V4_1100_RR_2015_28.06.PNG)
1 |
2B001656-ROD RIGHT More informationQuantity required : 1 |
||||||
|
2 |
2B001655-ROD LEFT More informationQuantity required : 1 |
||||||
|
3 |
B043561-FOURREAU More informationQuantity required : 2 |
||||||
|
4 |
2B002077-SPRING DE SUSPENSION More informationQuantity required : 2 |
||||||
|
5 |
B043563-CAP More informationQuantity required : 2 |
||||||
|
5 |
B046351-GR. CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
6 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
6 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
7 |
897331-NUT More informationQuantity required : 2 |
||||||
|
8 |
2B002078-HOSE FORK More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
9 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
|
10 |
2B002080-ELEM. POMPAGE G. CPL More informationQuantity required : 1 |
||||||
|
11 |
859777-PLATE More informationQuantity required : 1 |
||||||
|
12 |
897335-O-RING More informationQuantity required : 2 |
||||||
|
13 |
897336-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
14 |
PROTECTOR-POUSSIERE DE FORK OEM PIAGGIO APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD-897337 More informationQuantity required : 2 |
||||||
|
15 |
B046353-ROD RIGHT More informationQuantity required : 1 |
||||||
|
16 |
B046355-ROD G. More informationQuantity required : 1 |
||||||
|
17 |
897339-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
18 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.jpg)
19 |
BUSH/BUSH DE GUIDAGE DE FORK OEM APRILIA COMMON A LA RANGE MOTO-897341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.jpg)
20 |
BUSH OF FRICTION FORK OEM APRILIA COMMON A LA RANGE-897342 More informationQuantity required : 2 |
||||||
|
21 |
897343-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
22 |
OIL SEAL DE FORK OEM PIAGGIO APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD-897344 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
23 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 4 |
||||||
|
24 |
2B002079-ELEM. POMPAGE D. CPL More informationQuantity required : 1 |
||||||
|
25 |
B044314-GUIDE-CABLE More informationQuantity required : 1 |
