Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

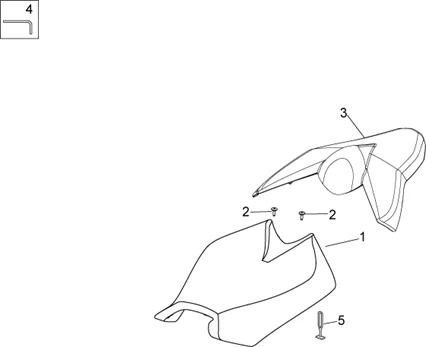

Chassis : 28.15 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/585/Tuono_V4_1100_RR_2015_28.15.PNG)
1 |
B04545600C2-SEAT PILOTE * More informationQuantity required : 1 |
|||||||||
|
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
2 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
3 |
2B002053000C1-SIÈGE PASSENGER * More informationQuantity required : 1 |
|||||||||
|
4 |
894195-TOOLS KEY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.jpg)
5 |
SANGLE ELASTIC OEM PIAGGIO COMMON A LA RANGE-AP8120177 More informationQuantity required : 1 |
|||||||||
