Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 Factory 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

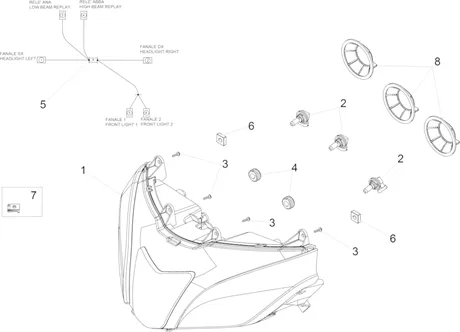

Chassis : 28.31 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/584/Tuono_V4_1100_Factory_2015_28.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/7/3/img/37873.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM APRILIA 1000 RSV4, 1100 TUONO V4 2015 > 2018-2D000116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
2 |
AMPOULE/LAMPE 12V 55W H7 OEM PIAGGIO COMMON A LA RANGE-294353 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
3 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
4 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
5 |
2D000203-WIRING LAMP AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/0/6/2/img/127062.JPG)
6 |
NUT CARRE (M6) OEM PIAGGIO COMMON A LA RANGE-2B002443 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/3/9/2/img/62392.jpg)
8 |
CAP DE HEADLAMP OEM APRILIA 1000-1100 2015 < 2020-B044778 More informationQuantity required : 3 |
