Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 Factory 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

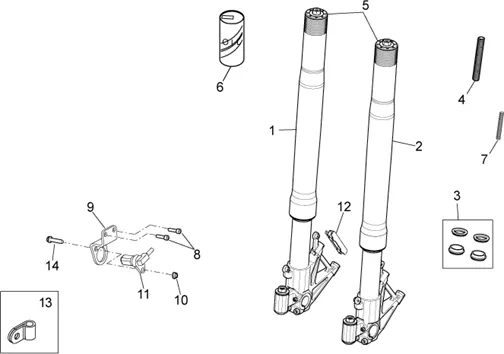

Chassis : 28.06 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/584/Tuono_V4_1100_Factory_2015_28.06.PNG)
1 |
2B001704 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
2B001703 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/1/img/156441.jpg)
3 |
SET OF JOINTS FORK FRONT OEM PIAGGIO APRILIA 1000-1100 RSV-2, RSV-4, TUONO V2, TUONO V4-2B006021 More informationQuantity required : 2 |
||||||
|
3 |
SET OF JOINTS FORK FRONT OEM PIAGGIO APRILIA 1000-1100 RSV-2, RSV-4, TUONO V2, TUONO V4-2B006021 More informationQuantity required : 2 |
||||||
|
4 |
893945-SPRING CLUTCH More informationQuantity required : 2 |
||||||
|
5 |
AP8123977 - GR. BOUCHON CPL. More informationQuantity required : 2 |
||||||
|
6 |
AP8116071-OIL FORK 1LT More informationQuantity required : 1 |
||||||
|
7 |
893966-CONTRE-SPRING More informationQuantity required : 2 |
||||||
|
8 |
AP8150064-SCREW FHC More informationQuantity required : 3 |
||||||
|
9 |
B046203-BRACKET DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
11 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
11 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
12 |
896944-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
13 |
B046190-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
14 |
SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914 More informationQuantity required : 1 |
