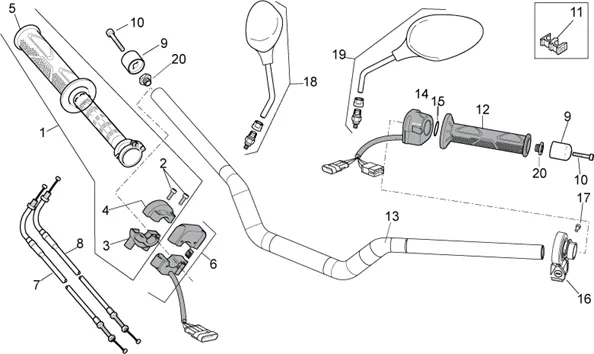

Chassis : 28.18 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/584/Tuono_V4_1100_Factory_2015_28.18.PNG)
1 |
GU01603380-CONTROL THROTTLE CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP8118492-SCREW CALOTTE More informationQuantity required : 2 |
||||||
|
3 |
AP8118566 - CAVALIER AV. COMMANDE GAZ; More informationQuantity required : 1 |
||||||
|
4 |
AP8118567-CAVALIER AR. CONTROL THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/5/img/73415.jpg)
5 |
REVETEMENT DE GRIP RIGHT WITH SLEEVE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01603480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/2/img/72852.jpg)
6 |
DEVIATEUR/CONTACTEUR FEUX RIGHT OEM PIAGGIO APRILIA 1000 RSV, TUONO, 900 SHIVER, DORSODURO/MOTO-GUZZI GRISO, BELLAGIO, BREVA, SPORT-B045021 More informationQuantity required : 1 |
||||||
|
7 |
899334-CABLE OUVERTURE THROTTLE More informationQuantity required : 1 |
||||||
|
8 |
899335-CABLE LATCH THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/6/img/71226.jpg)
9 |
HANDLEBAR END OEM PIAGGIO APRILIA 750-900 SHIVER, 1000-1100 TUONO/MOTO-GUZZI BREVA, STELVIO, V7, V9, V100-AP8104509 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
10 |
AP8152003 - VIS More informationQuantity required : 2 |
||||||
|
11 |
AP8201808-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/9/9/6/img/39996_20260306170228.jpg)
12 |
GRIP REVETEMENT LEFT OEM APRILIA 1000-1100 RSV4 2011 >-856027 More informationQuantity required : 1 |
||||||
|
13 |
2B001582-HANDLEBAR More informationQuantity required : 1 |
||||||
|
14 |
896150-DEVIATEUR FEUX LEFT * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/3/img/97063.jpg)
15 |
O-RING GRIP LEFT OEM APRILIA COMMON A LA RANGE-AP8120190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/4/4/img/39544.jpg)
16 |
DISPOSITIF DE CONTROL DE CHANGEMENT DE SPEED OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO-852398 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
17 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/6/img/42566_20260306170247.jpg)
18 |
RIGHT MIRROR OEM PIAGGIO APRILIA 750-1200 DORSODURO 2010 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2016 >, 1200 CAPONORD 2014 > TUONO 660 2021 >, TUONO 125 2017 >-896663 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/0/4/img/40504_20260306170242.jpg)
19 |
LEFT MIRROR OEM PIAGGIO APRILIA 750-1200 DORSODURO 2010 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2016 >, 1200 CAPONORD 2014 > TUONO 660 2021 >, TUONO 125 2017 >-858539 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
20 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
All the exploded views of this vehicle
-
