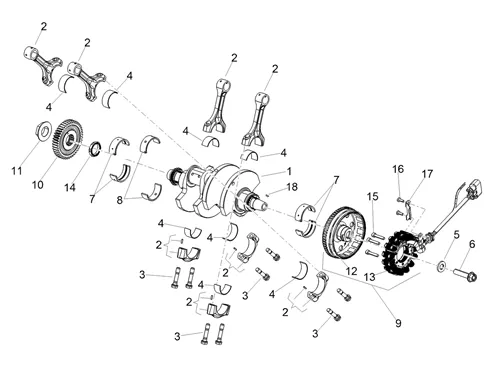

Moteur : 03.16 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/985/Tuono_V4_1100_E5_(Emea)_03.16.png)
1 |
1A017564MM CRANKSHAFT ASSEMBLY MM More informationQuantity required : 1 |
|||||||||
|
1 |
1A017564HH - CRANKSHAFT ASSY HH More informationQuantity required : 1 |
|||||||||
|
1 |
1A017564LL CRANKSHAFT ASSEMBLY LL More informationQuantity required : 1 |
|||||||||
|
1 |
1A017564PP CRANKSHAFT ASSEMBLY PP More informationQuantity required : 1 |
|||||||||
|
1 |
1A017564NN CRANKSHAFT ASSEMBLY NN More informationQuantity required : 1 |
|||||||||
|
1 |
1A017564OO-CRANKSHAFT ASSEMBLY OO More informationQuantity required : 1 |
|||||||||
|
2 |
1A019988DD-BIELLE COMPL. CLASS DD More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622AA - BIELLE CPL. AA More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622EE - BIELLE CPL. EE More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622BB - BIELLE COMPL. CLASS BB More informationQuantity required : 1 |
|||||||||
|
2 |
2A000622CC - BIELLE COMPL. CLASS CC More informationQuantity required : 1 |
|||||||||
|
2 |
1A019988DD-BIELLE COMPL. CLASS DD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/3/3/img/62633.jpg)
3 |
SCREW OF BIELLE OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4 2015 >-1A019989 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/1/1/8/0/img/211180.jpg)
4 |
COUSSINET DE BIELLE VERT OEM PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017 >-1A0252080V More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/1/1/7/9/img/211179.JPG)
4 |
HALF COUSSINET DE BIELLE BLUE OEM APRILIA 1100/1000 RSV4/TUONO, 600 RS/TUONO/TUAREG-1A0252080B More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/0/5/1/img/212051.jpg)
4 |
COUSSINET DE BIELLE JAUNE OEM PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017 >-1A0252080G More informationQuantity required : 2 |
|||||||||
|
4 |
HALF COUSSINET DE BIELLE BLUE OEM APRILIA 1100/1000 RSV4/TUONO, 600 RS/TUONO/TUAREG-1A0252080B More informationQuantity required : 2 |
|||||||||
|
4 |
2A0008370G - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
4 |
2A0008370V - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
5 |
897478-WASHER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/3/img/69753.jpg)
6 |
SCREW TH (12X1, 25X50) DE ROTOR IGNITION OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9-857206 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/0/img/108940.jpg)
7 |
COUSSINET DE PALLIER EXTERNE VILEBREQUIN REPERE BLUE OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, TUONO 2011 >, 1100 TUONO 2015 >-8571320B More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/1/img/108941.jpg)
7 |
COUSSINET DE PALLIER EXTERNE VILEBREQUIN REPERE JAUNE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-8571320G More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/4/img/108944.jpg)
7 |
HALF COUSSINET DE BIELLE VERT OEM PIAGGIO RSV4 2015 >-8571320V More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/5/img/108935.jpg)
8 |
COUSSINET DE PALLIER INTERNE VILEBREQUIN REPERE BLUE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-8571300B More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/6/img/108936.jpg)
8 |
HALF COQUILLE DE PALIIER JAUNE OEM APRILIA 1000-1100 RSV4 2013 >-8571300G More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/9/img/108939.jpg)
8 |
COUSSINET DE PALLIER CENTRAL VILEBREQUIN REPERE VERT OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-8571300V More informationQuantity required : 2 |
|||||||||
|
9 |
1A018304 FLYWHEEL COMPLETE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/9/0/img/108590.jpg)
10 |
2A000535-GEAR More informationQuantity required : 1 |
|||||||||
|
11 |
B043204-BUSH More informationQuantity required : 1 |
|||||||||
|
12 |
1A018303 COMPLETE ROTOR More informationQuantity required : 1 |
|||||||||
|
13 |
1A016388 COMPLETE STATOR More informationQuantity required : 1 |
|||||||||
|
14 |
897474-SPACER More informationQuantity required : 1 |
|||||||||
|
15 |
1A002951-SCREW More informationQuantity required : 3 |
|||||||||
|
16 |
1A002950 SCREW More informationQuantity required : 2 |
|||||||||
|
17 |
1A016340 PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
18 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
|||||||||
