Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 E5 (Emea)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

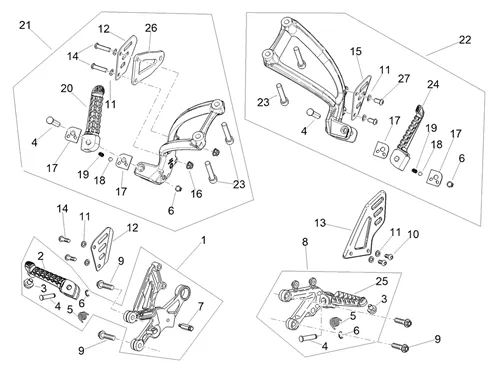

Chassis : 01.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/985/Tuono_V4_1100_E5_(Emea)_01.02.png)
1 |
2B008144 COMPLETE RH RIDER FOOTREST BRACKET More informationQuantity required : 1 |
||||||
|
2 |
897830 - TAPIS DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/0/img/73460.jpg)
3 |
PROTECTIVE SCREW FOR FOOTREST"PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI/APRILIA RANGE -GU30441005- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
4 |
PIVOT REST-FOOT (8X36) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8121566 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
5 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
6 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 4 |
||||||
|
7 |
GU05677730-PIVOT MOUNTING More informationQuantity required : 1 |
||||||
|
8 |
897829-SUP. PL. PILOTE GCHE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
9 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
11 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 8 |
||||||
|
12 |
2B005860-PROTECTOR MAT More informationQuantity required : 2 |
||||||
|
13 |
2B005861-PROTECTOR MAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 6 |
||||||
|
15 |
2B005862-PROTECTOR MAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
17 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
18 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
19 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
|
20 |
2B008162 RH FOOTREST More informationQuantity required : 1 |
||||||
|
21 |
2B0081935-ASSEMBLED LH FOOTREST More informationQuantity required : 1 |
||||||
|
22 |
2B0081905-ASSEMBLED LH FOOTREST More informationQuantity required : 1 |
||||||
|
23 |
B043041-SCREW M8X45 More informationQuantity required : 4 |
||||||
|
24 |
2B008163 LH FOOTREST More informationQuantity required : 1 |
||||||
|
25 |
897831 - SUP.PL.PILOTE GCHE More informationQuantity required : 1 |
||||||
|
26 |
2B008426 MUFFLER FIXING BRACKET More informationQuantity required : 1 |
||||||
|
27 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
