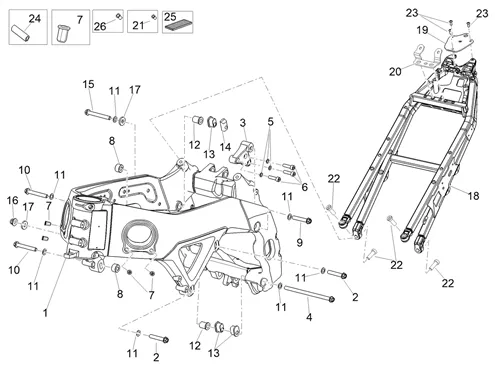

Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 1100 E5 (Emea) APRILIA

Chassis : 01.01 CHASSIS
Chassis
Search
2B0075085 - ANODIZED MACHINED FRAME

1
P2R reference P2R reference 175941
Maker reference Maker reference 2B0075085

2B0075085 ANODIZED MACHINED FRAME

More information

Quantity required : 1

SCREW FLANGE TH (10X50) OEM PIAGGIO COMMON A LA RANGE-268158

2
P2R reference P2R reference 67364
Maker reference Maker reference 598838

SCREW FLANGE TH (10X50) OEM PIAGGIO COMMON A LA RANGE-268158

More information

Quantity required : 2

898429 - FIXATION

3
P2R reference P2R reference 42949
Maker reference Maker reference 898429

898429-MOUNTING

More information

Quantity required : 1

858712 - PIVOT

4
P2R reference P2R reference 40525
Maker reference Maker reference 858712

858712-PIVOT

More information

Quantity required : 1

AP8152154 - RONDELLE

5
P2R reference P2R reference 71921
Maker reference Maker reference AP8152154

WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154

More information

Quantity required : 3

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107

6
P2R reference P2R reference 71823
Maker reference Maker reference AP8150107

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107

More information

Quantity required : 3

INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902

7
P2R reference P2R reference 71205
Maker reference Maker reference AP8102902

INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902

More information

Quantity required : 4

858718 - ENTRETOISE

8
P2R reference P2R reference 40528
Maker reference Maker reference 858718

858718-SPACER

More information

Quantity required : 2

AP8152410 - VIS BRIDE

9
P2R reference P2R reference 71982
Maker reference Maker reference AP8152410

SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410

More information

Quantity required : 1

SCREW FLANGE TH (10X65) OEM PIAGGIO COMMON A LA RANGE-895845

10
P2R reference P2R reference 42376
Maker reference Maker reference 895845

SCREW FLANGE TH (10X65) OEM PIAGGIO COMMON A LA RANGE-895845

More information

Quantity required : 2

WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292

11
P2R reference P2R reference 71856
Maker reference Maker reference AP8150292

WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292

More information

Quantity required : 7

858710 - DOUILLE DE REGLAGE

12
P2R reference P2R reference 40523
Maker reference Maker reference 858710

858710-BUSH DE REGLAGE

More information

Quantity required : 2

898427 - INSERT

13
P2R reference P2R reference 42947
Maker reference Maker reference 898427

898427-INSERT

More information

Quantity required : 3

898428 - INSERT

14
P2R reference P2R reference 42948
Maker reference Maker reference 898428

898428-INSERT

More information

Quantity required : 1

AP8152398 - VIS BRIDE

15
P2R reference P2R reference 71980
Maker reference Maker reference AP8152398

AP8152398-SCREW FLANGE

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

16
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

More information

Quantity required : 1

WASHER PLATE (10, 5X25X4) OEM PIAGGIO COMMON A LA RANGE-AP8152441

17
P2R reference P2R reference 51018
Maker reference Maker reference AP8152441

WASHER PLATE (10, 5X25X4) OEM PIAGGIO COMMON A LA RANGE-AP8152441

More information

Quantity required : 2

2B008268 - REAR FRAME WITH PI

18
P2R reference P2R reference 175942
Maker reference Maker reference 2B008268

2B008268 REAR FRAME WITH PI

More information

Quantity required : 1

19
P2R reference P2R reference
Maker reference Maker reference 2B0090865

2B008129 - SADDLE SUPPORT

20
P2R reference P2R reference 175943
Maker reference Maker reference 2B008129

2B008129 SADDLE BRACKET

More information

Quantity required : 1

AP8104390 - RIVET FILETE;

21
P2R reference P2R reference 45368
Maker reference Maker reference AP8104390

RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8104390

More information

Quantity required : 6

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469

22
P2R reference P2R reference 50887
Maker reference Maker reference AP8150469

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469

More information

Quantity required : 4

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152174

23
P2R reference P2R reference 71924
Maker reference Maker reference AP8152174

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152174

More information

Quantity required : 3

AP8144707 - GUARNIZIONE TELAIO

24
P2R reference P2R reference 71779
Maker reference Maker reference AP8144707

AP8144707-GUARNIZIONE TELAIO

More information

Quantity required : 1

AP8117033-ADHESIVE SPONGE

25
P2R reference P2R reference 46214
Maker reference Maker reference AP8117033

AP8117033-ADHESIVE SPONGE

More information

Quantity required : 1

RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544

26
P2R reference P2R reference 71187
Maker reference Maker reference AP8102544

RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544

More information

Quantity required : 4
