Vehicle Exploded View - APRILIA TUONO 660 4T 8V E5+ Factory 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

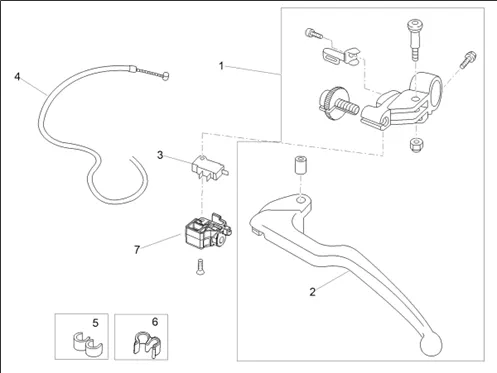

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_07.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/2/5/img/145625.jpg)
1 |
LEVER CLUTCH OEM APRILIA 660 TUAREG 2021 >/1100 TUONO 2017 >-2B003553 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/3/2/img/145732.jpg)
2 |
LEVER CLUTCH OEM APRILIA 1100 TUONO V4 2017 >, 660 TUAREG 2021 >-2B003989 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/3/7/img/145837.jpg)
3 |
INTERRUPTEUR STOP/CLUTCH OEM PIAGGIO RS, TUONO, TUAREG 660/RSV4 APRILIA/V85 MOTO GUZZI-2D000325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/9/3/img/174993.jpg)
4 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO 660 TUONO 2021 >-2B005348 More informationQuantity required : 1 |
||||||
5 |
667156-CLAMP More informationQuantity required : 1 |
||||||
|
6 |
893897-GUIDE-CABLE-PRODUIT NON REMPLACEMENT NON DÉFINI More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/9/4/img/174994.jpg)
7 |
2B008238 - CLUTCH LEVER SWITCH SUPPORT More informationQuantity required : 1 |
