Vehicle Exploded View - APRILIA TUONO 660 4T 8V E5+ Factory 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

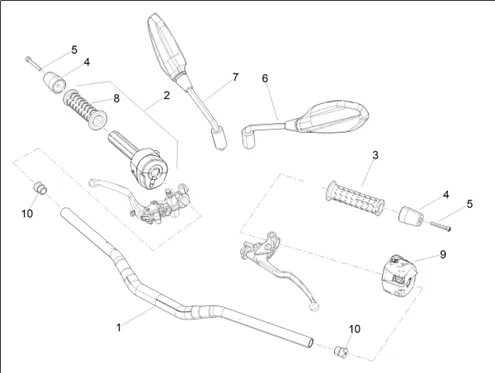

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_07.02.png)
1 |
2B013039-HANDLEBAR More informationQuantity required : 1 |
||||||
|
2 |
2B012983-RBW THROTTLE CONTROL WITH SWITCH MINDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/7/9/img/212779.JPG)
3 |
2B011350-GRIP LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/9/1/img/174991.jpg)
4 |
HANDLEBAR END OEM APRILIA 660 TUONO 2021 >/V7 STONE MOTO GUZZI 2021 >-2B008391 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
5 |
SCREW BTR (6X50) OEM PIAGGIO COMMON A LA RANGE-AP8150202 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/7/9/img/203379.jpg)
6 |
LEFT MIRROR OEM MOTO GUZZI V100 2022 >, STELVIO 2024-2B010979 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/7/8/img/203378.jpg)
7 |
RIGHT MIRROR OEM MOTO GUZZI V100 2022 >, STELVIO 2024-2B010978 More informationQuantity required : 1 |
||||||
|
8 |
2B014725 - POIGNEE DR. More informationQuantity required : 1 |
||||||
|
9 |
2D0007819-CONTROL HANDLEBAR G. More informationQuantity required : 1 |
||||||
|
10 |
2B013828-TERM. POIDS ANTIVIB. More informationQuantity required : 2 |
