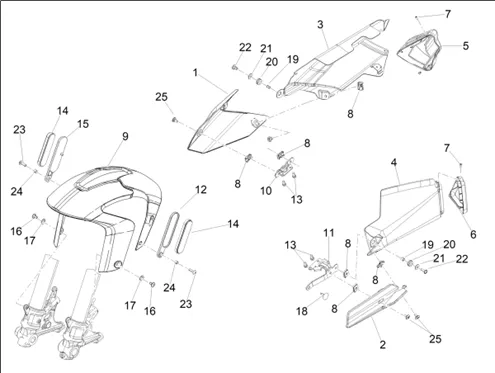

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
Garde-boue Av.-Embasement
Search
2B013086 - CARENAGE INFERIEUR DROIT

1
P2R reference P2R reference 222873
Maker reference Maker reference 2B013086

2B013086-FAIRING LOWER RIGHT

More information

Quantity required : 1

2B013087 - CARENAGE INFERIEUR GAUCHE

2
P2R reference P2R reference 222874
Maker reference Maker reference 2B013087

2B013087-FAIRING LOWER LEFT

More information

Quantity required : 1

PROTECTOR EXHAUST RIGHT ORIGNE APRILIA 660 RS, TUONO 2020 >-2B005345

3
P2R reference P2R reference 171516
Maker reference Maker reference 2B005345

PROTECTOR EXHAUST RIGHT ORIGNE APRILIA 660 RS, TUONO 2020 >-2B005345

More information

Quantity required : 1

PROTECTOR EXHAUST LEFT ORIGNE APRILIA 660 RS, TUONO 2020 >-2B007477

4
P2R reference P2R reference 171517
Maker reference Maker reference 2B007477

PROTECTOR EXHAUST LEFT ORIGNE APRILIA 660 RS, TUONO 2020 >-2B007477

More information

Quantity required : 1

2B012823 - AESTHETIC TERMINAL EXHAUST PROTECTION R

5
P2R reference P2R reference 218190
Maker reference Maker reference 2B012823

LATCH PROTECTOR RIGHT OEM APRILIA 660 RS E5 +/-FACTORY/TUONO E5 + 2025-2B012823

More information

Quantity required : 1

2B007479 - LEFT TERMINAL PART

6
P2R reference P2R reference 171519
Maker reference Maker reference 2B007479

LATCH PROTECTOR LEFT OEM APRILIA 660 RS E5/E5 +/660 TUONO E5/E5 + 2020 >-2B007479

More information

Quantity required : 1

RIVET OEM APRILIA COMMON A LA RANGE-1B005154

7
P2R reference P2R reference 174797
Maker reference Maker reference 1B005154

RIVET OEM APRILIA COMMON A LA RANGE-1B005154

More information

Quantity required : 7

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

8
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 12

FRONT MUDGUARD OEM APRILIA 660-1100 RS, TUONO 2021 >-2B008635

9
P2R reference P2R reference 174799
Maker reference Maker reference 2B008635

FRONT MUDGUARD OEM APRILIA 660-1100 RS, TUONO 2021 >-2B008635

More information

Quantity required : 1

2B013092 - BRIDE DROITE

10
P2R reference P2R reference 222875
Maker reference Maker reference 2B013092

2B013092-FLANGE RIGHT

More information

Quantity required : 1

2B013093 - LEFT LOWER FAIRING FIXING BRACKET

11
P2R reference P2R reference 218191
Maker reference Maker reference 2B013093

2B013093 - LEFT LOWER FAIRING FIXING BRACKET

More information

Quantity required : 1

2B011442 - SUPPORT CATADIOPTRE G.

12
P2R reference P2R reference 204805
Maker reference Maker reference 2B011442

2B011442-BRACKET CATADIOPTRE G.

More information

Quantity required : 1

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

13
P2R reference P2R reference 71938
Maker reference Maker reference AP8152272

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272

More information

Quantity required : 4

CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623

14
P2R reference P2R reference 57502
Maker reference Maker reference AP8224623

CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623

More information

Quantity required : 2

2B011441 - SUPPORT CATADIOPTRE D.

15
P2R reference P2R reference 204804
Maker reference Maker reference 2B011441

2B011441-BRACKET CATADIOPTRE D.

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

16
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 4

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

17
P2R reference P2R reference 71870
Maker reference Maker reference AP8150376

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

More information

Quantity required : 4

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

18
P2R reference P2R reference 71383
Maker reference Maker reference AP8120001

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

More information

Quantity required : 1

BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036

19
P2R reference P2R reference 72295
Maker reference Maker reference AP8221036

BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036

More information

Quantity required : 2

401605 - SILENBLOC

20
P2R reference P2R reference 66347
Maker reference Maker reference 401605

401605-SILENBLOC

More information

Quantity required : 2

WASHER PLATE (6X18) OEM PIAGGIO COMMON A LA RANGE-841821

21
P2R reference P2R reference 69207
Maker reference Maker reference 841821

WASHER PLATE (6X18) OEM PIAGGIO COMMON A LA RANGE-841821

More information

Quantity required : 2

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

22
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 2

2B003307 - VIS

23
P2R reference P2R reference 141013
Maker reference Maker reference 2B003307

2B003307-SCREW

More information

Quantity required : 2

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253

24
P2R reference P2R reference 71390
Maker reference Maker reference AP8120253

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

25
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 12
