Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

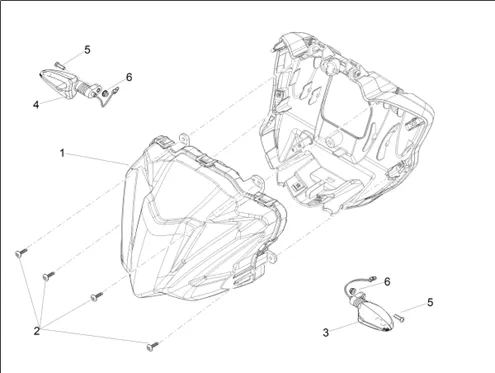

Feux - instruments : 08.01 ECLAIRAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_08.01.png)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM APRILIA 457 TUONO 2024-2B012315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
2 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/9/5/img/212795.jpg)
3 |
REAR LEFT INDICATOR OEM APRILIA RS 660/457 2024-2B010223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/9/4/img/212794.jpg)
4 |
REAR RIGHT INDICATOR OEM APRILIA RS 457-2B010224 More informationQuantity required : 1 |
||||||
|
5 |
2B012867-SCREW M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
6 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 2 |
