Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

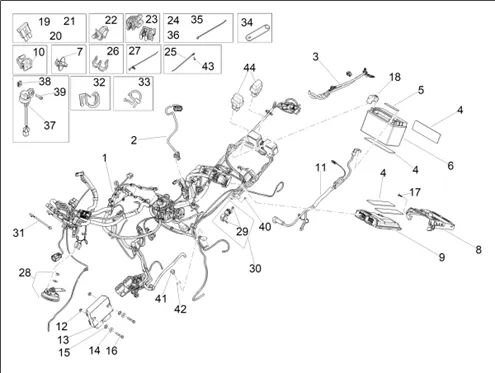

Dispositifs électriques : 11.01 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_11.01.png)
1 |
1D005178-MAIN HARNESS (USA) More informationQuantity required : 1 |
|||||||||
|
2 |
2D000792-WIRING PUMP FUEL More informationQuantity required : 1 |
|||||||||
|
3 |
2D000773-WIRING LUMIERE PLATE More informationQuantity required : 1 |
|||||||||
|
4 |
AP8144552-GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 1 |
|||||||||
|
5 |
2B008990-EPONGE ADHESIVE More informationQuantity required : 1 |
|||||||||
|
6 |
BATTERY 12V 9AH YTX9-BS OEM PIAGGIO COMMON A LA RANGE-498239 More informationQuantity required : 1 |
|||||||||
|
7 |
890760-BRACKET More informationQuantity required : 1 |
|||||||||
|
8 |
2B010935-PROTECTOR HOUSING ELECTRONIC More informationQuantity required : 1 |
|||||||||
|
9 |
CM3329047-CENTRE ELECTRONIC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
10 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 3 |
|||||||||
|
11 |
2D000772-CABLE BATTERY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
12 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
13 |
REGULATEUR DE TENSION OEM PIAGGIO 300-400-500-530 MP3 2021 >/APRILIA 660 2021 > 1100 RSV4-TUONO 2021 >-1A012332 More informationQuantity required : 1 |
|||||||||
|
14 |
227838 WASHER PLATE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
15 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/0/img/152910.jpg)
16 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-1A003063 More informationQuantity required : 2 |
|||||||||
|
17 |
601039 - BOULON More informationQuantity required : 2 |
|||||||||
|
18 |
895701-CAPUCHON More informationQuantity required : 1 |
|||||||||
|
19 |
CM225607-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
20 |
CM225610-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
21 |
CM225615-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
22 |
AP8221310-GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
|
23 |
2D000348-CONNECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
24 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
|||||||||
|
25 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
|||||||||
|
26 |
|
|||||||||
|
27 |
2D000676 CLAMP More informationQuantity required : 1 |
|||||||||
|
28 |
2B013641-HORN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
29 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
30 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
|
31 |
SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
32 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 6 |
|||||||||
|
33 |
668762-CLAMP More informationQuantity required : 2 |
|||||||||
|
34 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
35 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
36 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/9/img/67969.jpg)
37 |
SENSOR ANTI-BASCULEMENT OEM APRILIA 660 TUAREG, MOTO GUZZI V85TT-642248 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
38 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/1/img/178701.jpg)
39 |
SCREW BTR HEAD BOMBE (5X21) TORX OEM APRILIA RS 457/SR 125 2022 > 2023/SXR 50 2021 > 2023-1A014986 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
40 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-581596 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
41 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
42 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
43 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
44 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 2 |
|||||||||
