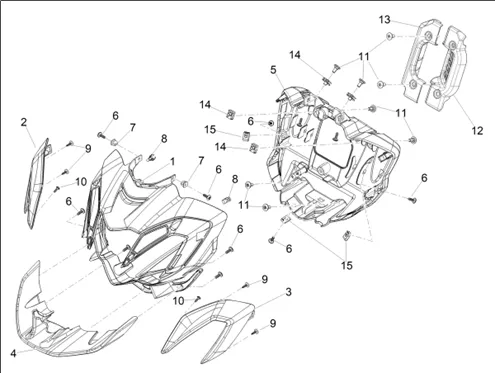

Vehicle Exploded View - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA) APRILIA

Carrosserie : 02.04 AVANT CARÈNE
Avant carène
Search
2B013527 - HEADLAMP COVER

1
P2R reference P2R reference 219507
Maker reference Maker reference 2B013527

2B013527-HEADLAMP COVER

More information

Quantity required : 1

SP2B013529000N24 - RIGHT HEADLIGHT MOLDING - BLACK GLOSSY

2
P2R reference P2R reference 219508
Maker reference Maker reference SP2B013529000N24

SP2B013529000N24-RIGHT HEADLIGHT MOLDING-BLACK GLOSSY

More information

Quantity required : 1

2B013529 - MOULURE AVANT D

2
P2R reference P2R reference 219509
Maker reference Maker reference 2B013529

2B013529-MOULURE FRONT D

More information

Quantity required : 1

SP2B013529000B06 - RIGHT HEADLIGHT MOLDING - BIANCO TECH G

2
P2R reference P2R reference 219510
Maker reference Maker reference SP2B013529000B06

SP2B013529000B06-RIGHT HEADLIGHT MOLDING-BIANCO TECH G

More information

Quantity required : 1

SP2B013528000N24 - LEFT HEADLIGHT MOLDING - BLACK GLOSSY

3
P2R reference P2R reference 219511
Maker reference Maker reference SP2B013528000N24

SP2B013528000N24-LEFT HEADLIGHT MOLDING-BLACK GLOSSY

More information

Quantity required : 1

2B013528 - MOULURE AVANT G

3
P2R reference P2R reference 219512
Maker reference Maker reference 2B013528

2B013528-MOULURE FRONT G

More information

Quantity required : 1

SP2B013528000B06 - LEFT HEADLIGHT MOLDING - BIANCO TECH GL

3
P2R reference P2R reference 219513
Maker reference Maker reference SP2B013528000B06

SP2B013528000B06-LEFT HEADLIGHT MOLDING-BIANCO TECH GL

More information

Quantity required : 1

SP2B013530000A23 - FRONT SPOILER - FLUO RED GLOSSY

4
P2R reference P2R reference 219514
Maker reference Maker reference SP2B013530000A23

SP2B013530000A23-FRONT SPOILER-FLUO RED GLOSSY

More information

Quantity required : 1

2B013530 - FRONT SPOILER

4
P2R reference P2R reference 219515
Maker reference Maker reference 2B013530

2B013530-FRONT SPOILER

More information

Quantity required : 1

2B013526 - PORTE-FEU

5
P2R reference P2R reference 219516
Maker reference Maker reference 2B013526

2B013526-DOOR-LAMP

More information

Quantity required : 1

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

6
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 10

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

7
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 2

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

8
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

More information

Quantity required : 2

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

9
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

More information

Quantity required : 4

SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141

10
P2R reference P2R reference 195738
Maker reference Maker reference 296141

SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

11
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 8

2B013524 - LEFT FRAME FRONT COVER

12
P2R reference P2R reference 219517
Maker reference Maker reference 2B013524

2B013524-LEFT FRAME FRONT COVER

More information

Quantity required : 1

2B013523 - RIGHT FRAME FRONT COVER

13
P2R reference P2R reference 219518
Maker reference Maker reference 2B013523

2B013523-RIGHT FRAME FRONT COVER

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

14
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 4

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

15
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 4
