Vehicle Exploded View - APRILIA TUONO 1000 V4 R STD APRC 2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

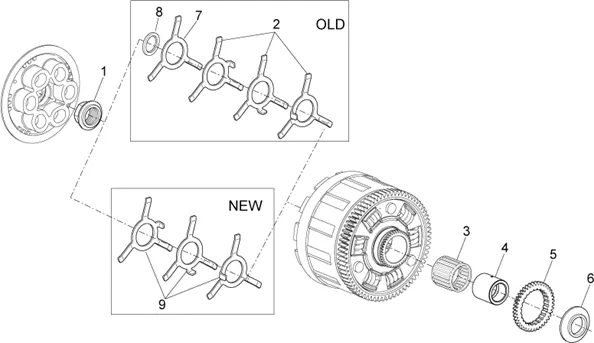

Moteur : 29.47 EMBRAGUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/732/Tuono_1000_V4_R_STD_APRC_2011_29.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/1/7/img/42017.jpg)
1 |
NUT D'EMBRAYAGE OEM PIAGGIO APRILIA 1000-1100 RSV4, TUONO V4 2009 >-893767 More informationQuantity required : 1 |
||||||
2 |
B044474-SPRING A CUP More informationQuantity required : 3 |
||||||
|
3 |
893769-ROLLER CAGE 35X40X35, 8 More informationQuantity required : 1 |
||||||
|
4 |
893770 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
5 |
894821-GEAR More informationQuantity required : 1 |
||||||
|
6 |
893772-WASHER 25X25X8 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
B043945-WASHER More informationQuantity required : 1 |
||||||
|
9 |
B044474-SPRING A CUP More informationQuantity required : 3 |
