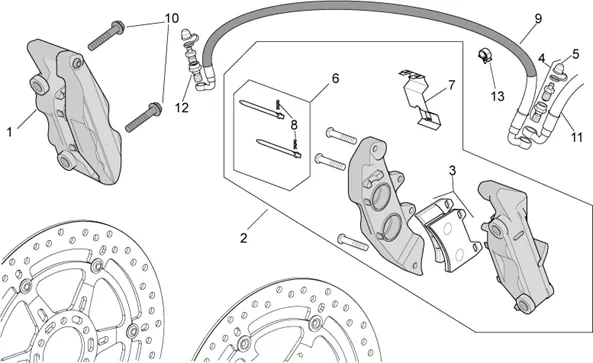

Chassis : 28.27 PINCE FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/732/Tuono_1000_V4_R_STD_APRC_2011_28.27.PNG)
1 |
852214-BRAKE CALIPER More informationQuantity required : 1 |
||||||
|
2 |
852215-BRAKE CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/6/img/71656_20260511112716.jpg)
3 |
BRAKE PADS FRONT BREMBO OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1200 NORGE, STELVIO, V9/APRILIA 750-1200 DORSODURO, 650 PEGASO, 1000 TUONO V2, 1000 TUONO V4 (PAIRE)-AP813614 More informationQuantity required : 2 |
||||||
|
4 |
899811-TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
5 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
6 |
AP8113721 - AXE +GOUPILLE PINCE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/2/img/46002.jpg)
7 |
SPRING-FOR BRAKE PADS "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, PEGASO, RST FUTURA, RSV-2, TUONO -AP8113722- More informationQuantity required : 2 |
||||||
|
8 |
AP8113723-GOUPILLE More informationQuantity required : 2 |
||||||
|
9 |
899810 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
10 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 4 |
||||||
|
11 |
899809 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/0/4/img/62104.jpg)
12 |
SCREW OF BLEEDING BRAKE CALIPER FRONT OEM PIAGGIO APRILIA 1000-1100 TUONO V4-B043489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
13 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
