Vehicle Exploded View - APRILIA TUONO 1000 V4 R STD APRC 2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

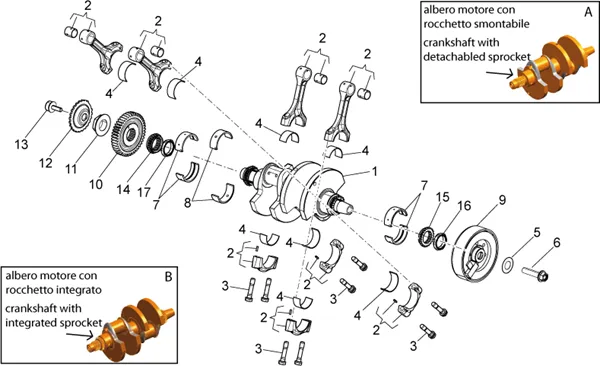

Moteur : 29.39 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/732/Tuono_1000_V4_R_STD_APRC_2011_29.39.PNG)
1 |
8572555-SHAFT ENGINE CPL. More informationQuantity required : 1 |
||||||
|
1 |
B045412CC-SHAFT ENGINE CPL. More informationQuantity required : 1 |
||||||
|
1 |
B045412AA-SHAFT ENGINE CPL * More informationQuantity required : 1 |
||||||
|
1 |
B045412DD-SHAFT ENGINE CPL. More informationQuantity required : 1 |
||||||
|
1 |
B045412FF-SHAFT ENGINE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/4/0/img/37640.jpg)
2 |
CONNECTING ROD ASSY APRILIA 1000 RSV-4, 1000 TUONO - FOR CAMSHAFT 44/BB (A5) - 2A000166BB - More informationQuantity required : 1 |
||||||
|
2 |
2A000166CC - BIELLE CPL. More informationQuantity required : 1 |
||||||
|
2 |
2A000166DD - BIELLE CPL. More informationQuantity required : 1 |
||||||
|
2 |
2A000166EE - BIELLE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/3/4/img/43234.jpg)
3 |
SCREW OF BIELLE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO V4 2009 > 2015-899565 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/0/0/img/40300.jpg)
4 |
HALF COUSSINET DE BIELLE REPERE RED OEM APRILIA 1000 RSV-4, TUONO 2009 > 2014-8571170001 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/0/1/img/40301.jpg)
4 |
HALF COUSSINET DE BIELLE REPERE BLUE OEM APRILIA 1000 RSV-4, TUONO 2009 > 2014-8571170002 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/0/2/img/40302.jpg)
4 |
HALF COUSSINET DE BIELLE REPERE JAUNE OEM APRILIA 1000 RSV-4, TUONO 2009 > 2014-8571170003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/6/2/img/139362.jpg)
4 |
HALF COUSSINET DE BIELLE REPERE JAUNE (H15. 8) OEM APRILIA 1000 RSV-4, TUONO 2009 > 2014-B0447240G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/7/9/img/108979.jpg)
4 |
COUSSINET DE BIELLE REPERE BLUE (H15. 8) OEM APRILIA 1000 RSV-4, TUONO 2009 > 2014-B0447240B More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/6/3/img/139363.jpg)
4 |
HALF COUSSINET DE BIELLE REPERE VERT (H15. 8) OEM APRILIA 1000 RSV-4, TUONO 2009 > 2014-B0447240V More informationQuantity required : 2 |
||||||
|
5 |
897478-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/3/img/69753.jpg)
6 |
SCREW TH (12X1, 25X50) DE ROTOR IGNITION OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9-857206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/3/img/108943.jpg)
7 |
COUSSINET DE PALLIER EXTERNE VILEBREQUIN REPERE RED OEM PIAGGIO APRILIA 1000 RSV-4, TUONO 2009 > 2015-8571320R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/0/img/108940.jpg)
7 |
COUSSINET DE PALLIER EXTERNE VILEBREQUIN REPERE BLUE OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, TUONO 2011 >, 1100 TUONO 2015 >-8571320B More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/1/img/108941.jpg)
7 |
COUSSINET DE PALLIER EXTERNE VILEBREQUIN REPERE JAUNE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-8571320G More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/8/img/108938.jpg)
8 |
BEARING SHELL "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -8571300R- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/5/img/108935.jpg)
8 |
COUSSINET DE PALLIER INTERNE VILEBREQUIN REPERE BLUE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-8571300B More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/6/img/108936.jpg)
8 |
HALF COQUILLE DE PALIIER JAUNE OEM APRILIA 1000-1100 RSV4 2013 >-8571300G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/2/6/img/156426.jpg)
9 |
VOLANT MAGNETIQUE COMPLETE (KOKUSAN) OEM PIAGGIO 1000/1100 RSV4, TUONO APRILIA 2011 >-1A010574 More informationQuantity required : 1 |
||||||
|
9 |
857201-VOLANT MAGNETIQUE COMPL. More informationQuantity required : 1 |
||||||
|
9 |
VOLANT MAGNETIQUE COMPLETE (KOKUSAN) OEM PIAGGIO 1000/1100 RSV4, TUONO APRILIA 2011 >-1A010574 More informationQuantity required : 1 |
||||||
|
10 |
899484-GEAR More informationQuantity required : 1 |
||||||
|
11 |
B043204-BUSH More informationQuantity required : 1 |
||||||
|
12 |
857118-CODEUR INSTRUMENT CLUSTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/7/8/img/40278.jpg)
13 |
SCREW SPECIALE (8X24) VILEBREQUIN OEM APRILIA 1000-1100 RSVA 2020 <-857077 More informationQuantity required : 1 |
||||||
|
14 |
857119 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/0/5/img/40305.jpg)
15 |
SPROCKET DE TIMING OEM APRILIA 1000 RSV4 2009 > 2010-857120 More informationQuantity required : 1 |
||||||
|
16 |
898092-BUSH More informationQuantity required : 1 |
||||||
|
17 |
897474-SPACER More informationQuantity required : 1 |
