Vehicle Exploded View - APRILIA TUONO 1000 V4 R APRC ABS 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

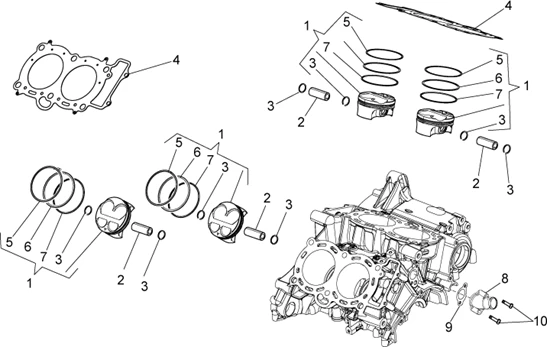

Moteur : 29.40 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/733/Tuono_1000_V4_R_APRC_ABS_2014_29.40.PNG)
1 |
CM227601-PISTON More informationQuantity required : 4 |
||||||
|
1 |
CM227602-PISTON More informationQuantity required : 4 |
||||||
|
2 |
857107-SPINDLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/8/img/40298.jpg)
3 |
CLIPS/CIRCLIPS (D17) DE PISTON OEM APRILIA 1000 RSV4 2009 > 2015-857108 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/8/8/img/40388.jpg)
4 |
CYLINDER HEAD GASKET OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, TUONO V4 2011 >-857445 More informationQuantity required : 2 |
||||||
|
5 |
899299-PISTON STOP RING More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/5/img/40295.jpg)
6 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO 2009 > 2016-857105 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/6/img/40296.jpg)
7 |
PISTON RING RACLEUR OIL OEM PIAGGIO APRILIA 1000 RSV-4, TUONO 2009 > 2016-857106 More informationQuantity required : 4 |
||||||
|
8 |
857126-FITTING More informationQuantity required : 1 |
||||||
|
9 |
857125-GASKET FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
10 |
SCREW TH FLANGE (6X40) OEM PIAGGIO COMMON A LA RANGE-874550 More informationQuantity required : 2 |
