Vehicle Exploded View - APRILIA TUONO 1000 V4 R APRC ABS 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

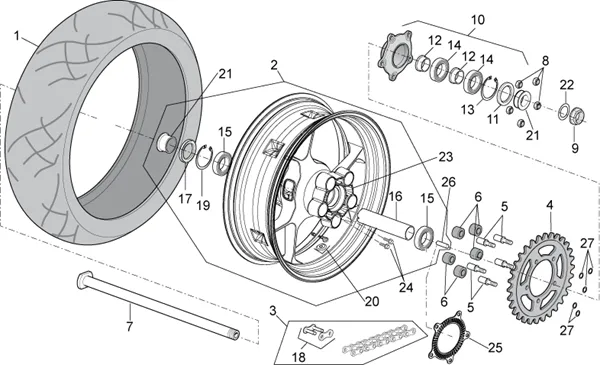

Chassis : 28.28 ROUE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/733/Tuono_1000_V4_R_APRC_ABS_2014_28.28.PNG)
1 |
PNEU 190/55 ZR 17 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/6/0/6/img/42606.jpg)
2 |
RIM/REAR WHEEL 6 " X17 BLACK ORIGNIE APRILIA 900 DORSODURO, SHIVER 2017 >/1100 RSV4 2021 >-896756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/6/9/img/42469.jpg)
3 |
CHAIN DE TRANSMISSION OEM APRILIA 1000 RSV-4 2011 >, 1100 RSV-4 2019 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2015 >-896358 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/8/7/8/img/62878.jpg)
4 |
COURONNE 42 TEETH OEM APRILIA 1000-1100 TUONO 2011 >-CM224903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/3/img/72853.jpg)
5 |
PIVOT/SCREW OF COURONNE REAR OEM PIAGGIO APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV-B045033 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/5/img/72805.jpg)
6 |
RUBBER MOUNT DE COURONNE REAR OEM PIAGGIO APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV-B043317 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/2/2/2/img/139222.jpg)
7 |
WHEEL SPINDLE REAR 0RIGINE APRILIA 1000-1100 RSV4 2009 >-8587315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
9 |
NUT DE REAR WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152324 More informationQuantity required : 1 |
||||||
|
10 |
AP81257305-DOOR-COURONNE CPL. More informationQuantity required : 1 |
||||||
|
11 |
AP8121213-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
12 |
AP8125732-SPACER GASKET ELAST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/9/img/46749.jpg)
13 |
CLIPS/CIRCLIPS (D55) OEM PIAGGIO COMMON A LA RANGE-AP8121212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/1/img/45831.jpg)
14 |
BEARING (30X55X13) OEM APRILIA COMMON A LA RANGE-AP8110081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
15 |
BEARING (25X52X15) DE REAR WHEEL (6205) OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 50-125 RS4, 900-1200 DORSODURO/GILERA 50 SMT, RCR 2018 >/MOTO GUZZI 1400 CALIFORNIA, AUDACE-AP8110093 More informationQuantity required : 2 |
||||||
|
16 |
AP8128170-SPACER INT. WHEEL POST. More informationQuantity required : 1 |
||||||
|
17 |
AP8125838-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/6/7/img/40667.jpg)
18 |
CLIP QUICK OEM APRILIA RSV2, RSV4,-859754 More informationQuantity required : 1 |
||||||
|
19 |
CLIPS/CIRCLIPS (D52) OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125839 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
20 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
|
21 |
AP8121592-SPACER WHEEL POST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
22 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/0/8/img/108608.jpg)
23 |
RUBBER MOUNT DE REAR WHEEL OEM PIAGGIO APRILIA 750-900-1200 DORSODURO, 1000 RSV-2, RSV-4, TUONO, 1200 CAPONORD-2B000639R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
24 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/0/6/img/70806.jpg)
25 |
CODEUR/WHEEL PHONIQUE ABS REAR OEM PIAGGIO APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4, 660 RS-890960 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/4/img/50884.jpg)
26 |
GOUPILLE (10X20) OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8150463 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
27 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 5 |
