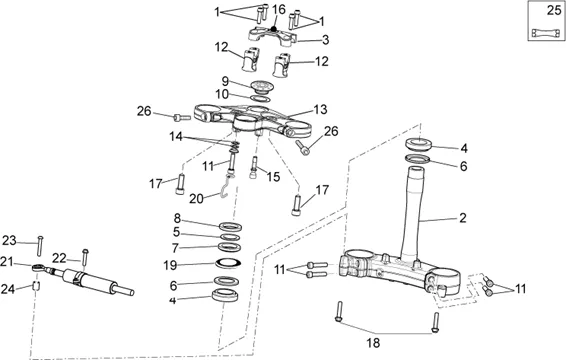

Vehicle Exploded View - APRILIA TUONO 1000 V4 R APRC ABS 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.05 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/733/Tuono_1000_V4_R_APRC_ABS_2014_28.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
1 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
2 |
PLATINE DE FORK INFERIEURE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO V4-858803 More informationQuantity required : 1 |
||||||
|
3 |
899049-CAVALIER SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.jpg)
4 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
4 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
4 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
4 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
5 |
WASHER DE SECURITE DE STEERING OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-AP8121207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
6 |
ANNEAU PROTECTOR-POUSSIERE STEERING OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP8123641 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
7 |
NUT DE STEERING OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
8 |
NUT DE COLONNE DE STEERING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8123643 More informationQuantity required : 1 |
||||||
|
9 |
AP8121346-BUSH FX. PL. SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
10 |
WASHER FOR NUT TE DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8152384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
11 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 5 |
||||||
|
12 |
899427-CAVALIER More informationQuantity required : 2 |
||||||
|
13 |
898680 - PLAQUE SUP. FOURCHE More informationQuantity required : 1 |
||||||
|
14 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
15 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) OEM PIAGGIO COMMON A LA RANGE-AP8152238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
16 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
17 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
18 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
19 |
WASHER PROTECTOR-POUSSIERE OEM APRILIA/MOTOGUZZI COMMON A LA RANGE-AP8123644 More informationQuantity required : 1 |
||||||
|
20 |
B044620-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/2/8/7/img/52287.jpg)
21 |
SHOCK ABSORBER DE STEERING MOTO OEM APRILIA RSV-4 1000 2009 > 2014, TUONO 1000 2006 > 2015-AP8163498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/5/img/71865.jpg)
22 |
SCREW BTR (6X70) OEM PIAGGIO COMMON A LA RANGE-AP8150342 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
23 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150220 More informationQuantity required : 1 |
||||||
|
24 |
AP8134640-SPACER BODY FILTER More informationQuantity required : 1 |
||||||
|
25 |
899206-SPACER More informationQuantity required : 1 |
||||||
|
26 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 2 |
