Vehicle Exploded View - APRILIA TUAREG 50 Rally 50 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

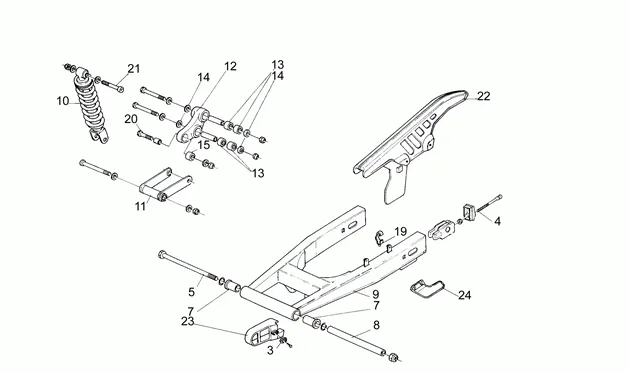

Chassis : 9 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
3 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 1 |
||||||
4 |
VIS (VOIR REF 8=8152024 |
||||||
|
5 |
AXE FOURCHE CPL. |
||||||
|
7 |
DOUILLE |
||||||
|
8 |
DOUILLE ENTRETOISE |
||||||
|
9 |
FOURCHE ALU. |
||||||
|
10 |
AMORTISSEUR ARRIERE |
||||||
|
11 |
BIELLA SINGOLA VERN.ALLU |
||||||
|
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/1/img/45821.jpg)
13 |
CAGE A AIGUILLE DE BIELETTE SUSPENSION REAR OEM PIAGGIO APRILIA 50 MX, SX, RX, 125 RS, TUAREG, TUONO, PEGASO-AP8110063 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.jpg)
14 |
OIL SEAL (18X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8110068 More informationQuantity required : 6 |
||||||
|
15 |
CAGE A ROULEMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/0/img/48900.jpg)
19 |
GUIDE CABLE OEM PIAGGIO/APRILIA COMMON A LA RANGE-AP8134186 More informationQuantity required : 2 |
||||||
|
20 |
AP8152144 - VIS More informationQuantity required : 1 |
||||||
|
21 |
B T R 10X82 |
||||||
|
22 |
AP8230668-CASING CHA? NE More informationQuantity required : 1 |
||||||
|
23 |
PATIN GUIDE CHAINE NOIR |
||||||
|
24 |
AP8120700 - GALET GUIDE-CHA?NE AR. GRIS More informationQuantity required : 1 |
