Vehicle Exploded View - APRILIA TUAREG 50 Rally 50 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

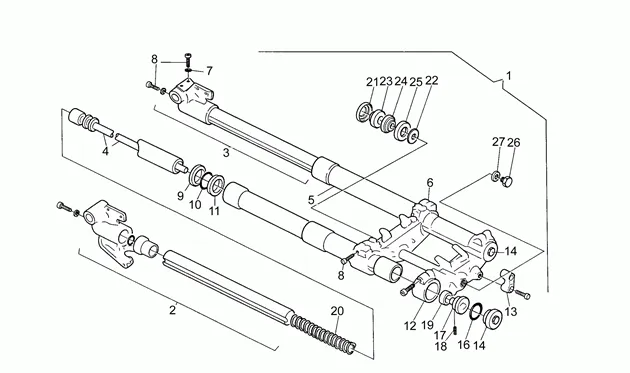

Chassis : 8 FOURCHE AV. IM BCD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_8.PNG)
1 |
|
||||||
|
2 |
PROTEGE TIGE G |
||||||
|
3 |
AP8203366 - PROTEGE TIGE DROIT More informationQuantity required : 1 |
||||||
|
4 |
Elém.pompage cpl |
||||||
|
5 |
JEU FOURREAU |
||||||
|
6 |
Plaque inf. |
||||||
|
7 |
RONDELLE |
||||||
|
8 |
|
||||||
|
9 |
CACHE POUSSIERE (PL) |
||||||
|
10 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/2/img/67412.jpg)
11 |
OIL SEAL (35X47X10) DE FORK MARZOCCHI OEM PIAGGIO APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX-600126 More informationQuantity required : 2 |
||||||
|
12 |
TE SUPERIEUR |
||||||
|
13 |
Cavalier |
||||||
|
14 |
BOUCHON GAUCHE |
||||||
|
16 |
JOINT TORIQUE |
||||||
|
17 |
Douille |
||||||
|
18 |
Goupille |
||||||
|
19 |
GOMMINO FINE CORSA(PL) |
||||||
|
20 |
Ressort |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
21 |
WASHER PLATE (25X51X1) OEM PIAGGIO COMMON A LA RANGE-AP8101271 More informationQuantity required : 1 |
||||||
|
22 |
AP8101272-ANNEAU BRACKET PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
23 |
BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
24 |
BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025 More informationQuantity required : 1 |
||||||
|
25 |
AP8120211-PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
|
26 |
DADO CIECO CANNOTTO STER |
||||||
|
27 |
RONDELLE ACIER PLATE |
