Vehicle Exploded View - APRILIA TUAREG 50 Rally 50 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

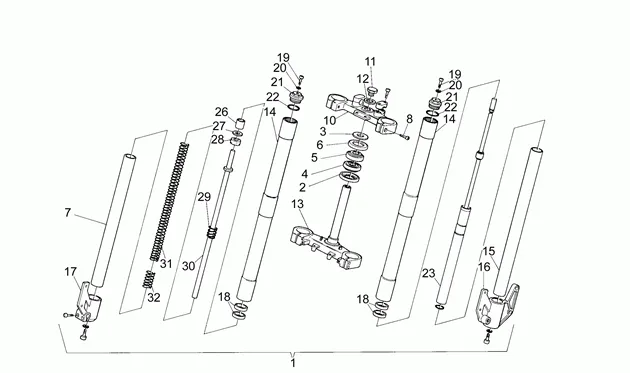

Chassis : 7 FOURCHE AV. IM A
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/583/Tuareg_Rally_50_1990-1992_7.PNG)
1 |
FORCELLA FODERI PAGLIERI |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
2 |
WASHER PLATE (25X51X1) OEM PIAGGIO COMMON A LA RANGE-AP8101271 More informationQuantity required : 1 |
||||||
|
3 |
AP8101272-ANNEAU BRACKET PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
4 |
BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
5 |
BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025 More informationQuantity required : 1 |
||||||
|
6 |
AP8120211-PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
|
7 |
FOURREAU DROIT |
||||||
|
8 |
VIS M 8 X 35 (V=8205053 |
||||||
|
10 |
TE SUPERIEUR |
||||||
|
11 |
DADO CIECO CANNOTTO STER |
||||||
|
12 |
RONDELLE ACIER PLATE |
||||||
|
13 |
PIASTRA INFERIORE CON CA |
||||||
|
14 |
FODERO (DX-SX) ANOD.PAGL |
||||||
|
15 |
TUBE FOURCHE SX |
||||||
|
16 |
Moyeu gauche |
||||||
|
17 |
MOZZETTO DX (PL) |
||||||
|
18 |
Paire spy 35x47x7 |
||||||
|
19 |
VIS BTR |
||||||
|
20 |
|
||||||
|
21 |
BOUCHON |
||||||
|
22 |
BAQUE D'ETANCHEITE |
||||||
|
23 |
Elém.pompage cpl |
||||||
|
26 |
ENTRETOISE |
||||||
|
27 |
RONDELLE (PL) |
||||||
|
28 |
TAMPON |
||||||
|
29 |
RESSORT (PL) |
||||||
|
30 |
TIGE RESSORT |
||||||
|
31 |
RESSORT (PL) |
||||||
|
32 |
RESSORT (PL) |
