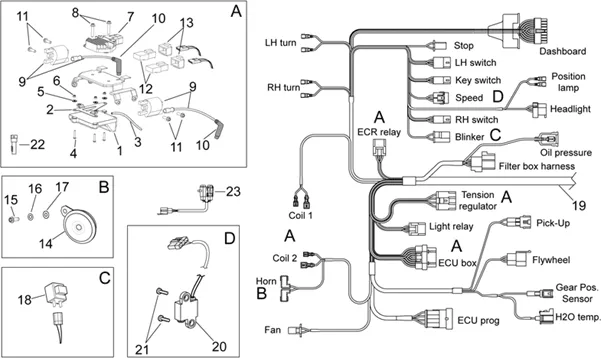

Chassis : 28.30 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.30.PNG)
1 |
AP9100447 - CENTRALINA ELETTR.COMPL. More informationQuantity required : 1 |
||||||
|
2 |
851023-PLATE FIX. More informationQuantity required : 1 |
||||||
|
3 |
AP8220598-HOSE DE PURGE More informationQuantity required : 1 |
||||||
|
4 |
853591 - VIS M4X20 More informationQuantity required : 3 |
||||||
|
4 |
AP9100945 - VITE TBEI M4X20 More informationQuantity required : 3 |
||||||
|
5 |
853592 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
5 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 3 |
||||||
|
6 |
853593 - ECROU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 3 |
||||||
|
7 |
AP9100424 - REGOLATORE DI TENSIONE D.C. More informationQuantity required : 1 |
||||||
|
8 |
853594 - VIS M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
|
9 |
AP9100429-BOBINA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/4/img/72604.jpg)
10 |
ANTIPARASITE OEM PIAGGIO MOTO-GUZZI 1200 BREVA, SPORT, NORGE/APRILIA 450-550 RXV, SXV-AP9100423 More informationQuantity required : 2 |
||||||
|
11 |
853595 - VIS M6X15 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
12 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
13 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 2 |
||||||
|
14 |
AP8127391 - KLAXON; More informationQuantity required : 1 |
||||||
|
15 |
AP8152112-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
16 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
17 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
18 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
|
19 |
855053 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
19 |
855367 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
20 |
AP9100965 - SENSORE VELOCITA' CON PROTEZ.C More informationQuantity required : 1 |
||||||
|
21 |
AP8150460-SCREW TARAUD More informationQuantity required : 2 |
||||||
|
22 |
858246-PROTECTOR More informationQuantity required : 1 |
||||||
|
23 |
856665 - GR. LED More informationQuantity required : 1 |
