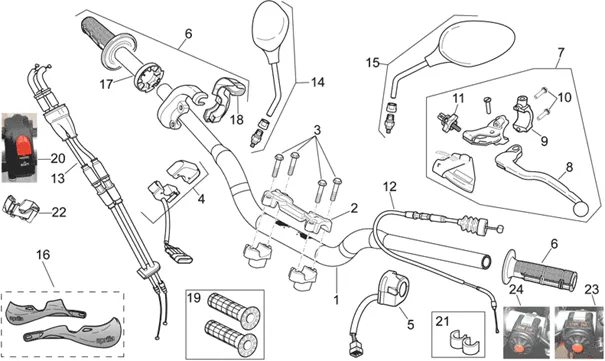

Chassis : 28.17 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.17.PNG)
1 |
855049 - GUIDON More informationQuantity required : 1 |
||||||
|
2 |
853567 - COLLIER More informationQuantity required : 1 |
||||||
|
3 |
853534 - VIS M8X35 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
3 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 4 |
||||||
|
4 |
AP9100514 - DEVIOLUCI DX More informationQuantity required : 1 |
||||||
|
5 |
855043 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
6 |
855271 - COMMANDE GAZ+POIGNEE More informationQuantity required : 1 |
||||||
|
6 |
AP9100481 - COMANDO GAS COMPL.DI MANOPOLE More informationQuantity required : 1 |
||||||
|
7 |
855270 - 'COMMANDE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
7 |
AP9100484 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
8 |
AP9100939-LEVA FRIZIONE More informationQuantity required : 1 |
||||||
|
9 |
AP9100940-CAVALLOTTO More informationQuantity required : 1 |
||||||
|
10 |
853598 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
|
11 |
896503 - REGULATEUR More informationQuantity required : 1 |
||||||
|
12 |
853662 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
12 |
855272 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
13 |
AP9100802-TRASMISSIONE COMANDO GAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
14 |
RIGHT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/3/img/71243.jpg)
15 |
LEFT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104922 More informationQuantity required : 1 |
||||||
|
16 |
RXV HANDGUARDS |
||||||
|
16 |
851084 - MOTARD HANDGUARDS More informationQuantity required : 1 |
||||||
|
17 |
851359-TUBE THROTTLE More informationQuantity required : 1 |
||||||
|
18 |
851360 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/4/img/72264.jpg)
19 |
HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX (PAIR) -AP8218628 More informationQuantity required : 1 |
||||||
|
20 |
858247 - DISPOSITIF ELECTRIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.jpg)
21 |
CLIPS SPRING MOUNTING HARNESS ORIGNE APRILIA-MOTO GUZZI COMMON A LA RANGE-AP9100519 More informationQuantity required : 3 |
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/9/7/img/97297.jpg)
23 |
BUTTON COUPE CIRCUIT OEM APRILIA 450-550 RXV, SXV-AP9100425 More informationQuantity required : 1 |
||||||
|
24 |
AP9100426 - BOUTON DEMARRAGE More informationQuantity required : 1 |
