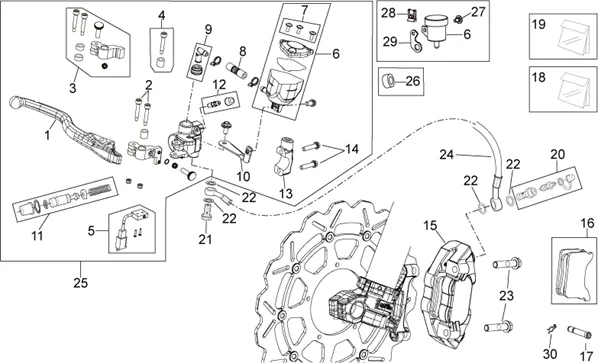

Chassis : 28.27 SYS.FREIN AVANT II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.27.PNG)
1 |
Levier frein |
||||||
|
2 |
AP9100921 - VITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/4/3/6/img/96436.jpg)
3 |
KIT REVISION BRAKE MASTER CYLINDER FRONT OEM PIAGGIO APRILIA 650 PEGASO, 450-550 RXV, SXV-851367 More informationQuantity required : 1 |
||||||
|
4 |
AP9100919-KIT PREMENTE More informationQuantity required : 1 |
||||||
|
5 |
AP9100918 - INTERRUTTORE STOP More informationQuantity required : 1 |
||||||
|
6 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
||||||
|
7 |
AP9100916 - VITI COPERCHIO More informationQuantity required : 1 |
||||||
|
8 |
AP9100915-TUBO BRAKE More informationQuantity required : 1 |
||||||
|
9 |
AP9100914-RACCORDO PUMP More informationQuantity required : 1 |
||||||
|
10 |
851368-PLATE More informationQuantity required : 1 |
||||||
|
11 |
AP9100912 - KIT REVISIONE PISTONCINO More informationQuantity required : 1 |
||||||
|
12 |
AP9100911-KIT SPURGO More informationQuantity required : 1 |
||||||
|
13 |
AP9100910-CAVALLOTTO More informationQuantity required : 1 |
||||||
|
14 |
853649 - VIS M6X25 More informationQuantity required : 2 |
||||||
|
15 |
853653 - ETRIER DE FREIN More informationQuantity required : 1 |
||||||
|
16 |
853815 - JEU PLAQUETTES FREINS More informationQuantity required : 2 |
||||||
|
17 |
894822 - PIVOT More informationQuantity required : 1 |
||||||
|
18 |
AP9100908 - KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
|
19 |
AP9100909 - KIT PISTONCINI More informationQuantity required : 1 |
||||||
|
20 |
AP9100905-KIT REVISIONE SPURGO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
21 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
22 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
|
23 |
853656 - VIS M10X1.25 More informationQuantity required : 2 |
||||||
|
24 |
853651 - TUYAU More informationQuantity required : 1 |
||||||
|
25 |
855362 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
26 |
855364-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
27 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
28 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
|
29 |
AP9100964 - PIASTRINA AGGANGIO MOLLE More informationQuantity required : 1 |
||||||
|
30 |
894823 - GOUPILLE More informationQuantity required : 1 |
