Vehicle Exploded View - APRILIA SXV 450 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

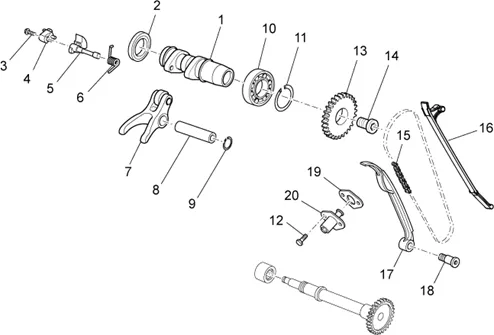

Moteur : 29.40 DISTRIBUTION CYLINDRE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/626/SXV_450_2009-2011_29.40.PNG)
1 |
CM2376015 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
2 |
85104R-BALL BEARING D25-D37-SP7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
3 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 1 |
||||||
|
4 |
AP9150303-BLOCCHETTO ARR. ALZAVAL More informationQuantity required : 1 |
||||||
|
5 |
855507 - MASSELOTTE AV More informationQuantity required : 1 |
||||||
|
6 |
855515-SPRING More informationQuantity required : 1 |
||||||
|
7 |
AP9150096 - BILANCIERE COMPLETO More informationQuantity required : 1 |
||||||
|
8 |
851468-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/8/img/63818.jpg)
9 |
CLIPS/CIRCLIPS SHAFT OF PISTON (10. 8) OEM PIAGGIO 50 VESPA FL2/THREE-WHEELER APE DIESEL TM 603, CAR, POKER-0066126 More informationQuantity required : 1 |
||||||
|
10 |
85105R-BEARING D25-D42-SP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/4/img/63824.jpg)
11 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006642 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
|
13 |
AP9150506-INGR. DISTRIB. SUP Z 22 More informationQuantity required : 1 |
||||||
|
14 |
AP9150507-SCREW SPECIALE SX M16X1 More informationQuantity required : 1 |
||||||
|
15 |
AP9150133 - CATENA DISTRIBUZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/6/7/img/97767.jpg)
15 |
CHAIN DE TIMING OEM PIAGGIO APRILIA 450-550 SXV, RXV-AP9150327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/1/1/img/97611.jpg)
16 |
TIMING CHAIN GUIDE "PIAGGIO GENUINE PART" APRILIA 450 SXV, RXV -AP9150011 More informationQuantity required : 1 |
||||||
|
16 |
GUIDE CHAIN DE TIMING OEM PIAGGIO APRILIA 550 SXV, RXV-AP9150300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/1/2/img/97612.jpg)
17 |
TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" APRILIA 450 SXV, RXV -AP9150012 More informationQuantity required : 1 |
||||||
|
18 |
AP9150231 - VITE SPECIALE CON E.I. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
19 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
20 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
20 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
