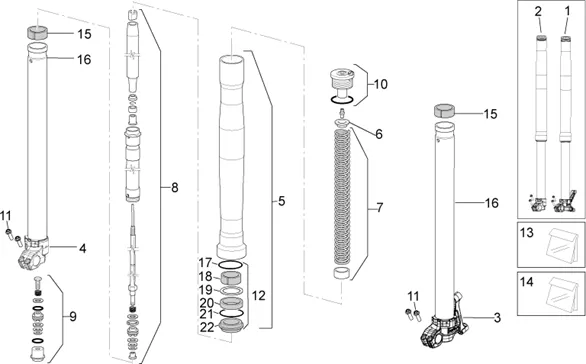

Chassis : 28.05 FOURCHE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/626/SXV_450_2009-2011_28.05.PNG)
1 |
855116 - TUBE FOURCHE More informationQuantity required : 1 |
||||||
|
1 |
859802 - TUBE FOURCHE G More informationQuantity required : 1 |
||||||
|
2 |
855119 - TUBE FOURCHE DT More informationQuantity required : 1 |
||||||
|
2 |
859803 - TUBE FOURCHE DT More informationQuantity required : 1 |
||||||
|
3 |
855796-ROD + DOOR-WHEEL G More informationQuantity required : 1 |
||||||
|
3 |
896559 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
855797-ROD + DOOR-WHEEL D More informationQuantity required : 1 |
||||||
|
4 |
Tige droite |
||||||
|
5 |
855798-FOURREAU. More informationQuantity required : 2 |
||||||
|
5 |
896553 - TIGE More informationQuantity required : 2 |
||||||
|
6 |
896554 - BAGUE More informationQuantity required : 2 |
||||||
|
6 |
AP9100872 - ANELLO PER MOLLA D40 More informationQuantity required : 2 |
||||||
|
7 |
896555 - KIT RESSORT More informationQuantity required : 2 |
||||||
|
7 |
AP9100873-KIT MOLLA More informationQuantity required : 2 |
||||||
|
8 |
896557 - TIGE More informationQuantity required : 2 |
||||||
|
8 |
AP9100874 - POMPANTE COMPLETO More informationQuantity required : 2 |
||||||
|
9 |
896556-FRONT FORK More informationQuantity required : 2 |
||||||
|
9 |
AP9100875-VALVOLA COMPLETA D45 More informationQuantity required : 2 |
||||||
|
10 |
893189-CAP CPL. D50 More informationQuantity required : 2 |
||||||
|
10 |
AP9100876-CAP COMPLETO D45 More informationQuantity required : 2 |
||||||
|
11 |
893187-SCREW M6X25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
11 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 4 |
||||||
|
12 |
AP9100877-KIT PARAPOLVERE + PARAOLIO More informationQuantity required : 1 |
||||||
|
13 |
AP9100878-KIT GUARNIZIONI D. 48 More informationQuantity required : 1 |
||||||
|
14 |
AP9100879-KIT BOCCOLE More informationQuantity required : 1 |
||||||
|
15 |
854000-BUSH More informationQuantity required : 2 |
||||||
|
15 |
894814 - BAGUE More informationQuantity required : 2 |
||||||
|
16 |
894816 - TIGE FOURCHE More informationQuantity required : 2 |
||||||
|
17 |
855001-CICLIPS D. 62X2, 0 More informationQuantity required : 2 |
||||||
|
18 |
853982-BUSH 50X15 More informationQuantity required : 2 |
||||||
|
19 |
AP8163069-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/1/9/img/72019.jpg)
20 |
OIL SEAL (50X63X11) DE FORK OEM PIAGGIO CAPONORD 2001 > 2007/RXV, SXV 450-550-AP8163070 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/0/img/72020.jpg)
21 |
BUSH OF BUTEE FORK OEM APRILIA 1000 CAPONORD 2001 > 2007/MOTO GUZZI 1200 STELVIO 2008 > 2010-AP8163071 More informationQuantity required : 2 |
||||||
|
22 |
AP8163072-PROTECTOR-POUSSIERE More informationQuantity required : 2 |
