Vehicle Exploded View - APRILIA SXV 450 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

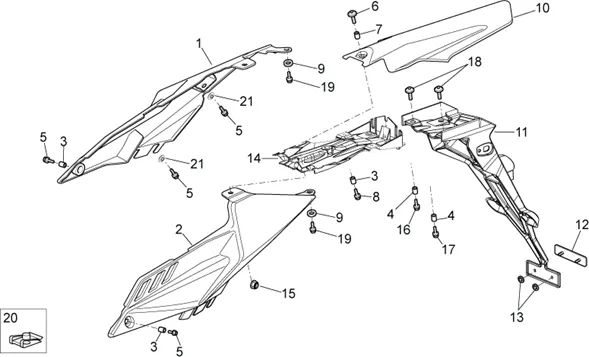

Chassis : 28.15 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/626/SXV_450_2009-2011_28.15.PNG)
1 |
REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -AP8184497- More informationQuantity required : 1 |
||||||
|
1 |
AP8184917 - QUEUE, NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/3/0/img/97130.jpg)
2 |
REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -AP8184496 More informationQuantity required : 1 |
||||||
|
2 |
AP8184918 - QUEUE, NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
4 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
5 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 1 |
||||||
|
7 |
AP9100594-BUSSOLA COLLETTO D16-D10-SP7 More informationQuantity required : 1 |
||||||
|
8 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
10 |
GUARD-MUD REAR OEM PIAGGIO APRILIA 450-550 RXV, SXV-AP8156381 More informationQuantity required : 1 |
||||||
|
11 |
855041 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
|
11 |
898847 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
12 |
AP8112202 - CATADIOPTRE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
13 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 1 |
||||||
|
14 |
855046-SUPP. DE HEADLAMP More informationQuantity required : 1 |
||||||
|
15 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 1 |
||||||
|
16 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
|
17 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
18 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
19 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
21 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
