Vehicle Exploded View - APRILIA SXV 450 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

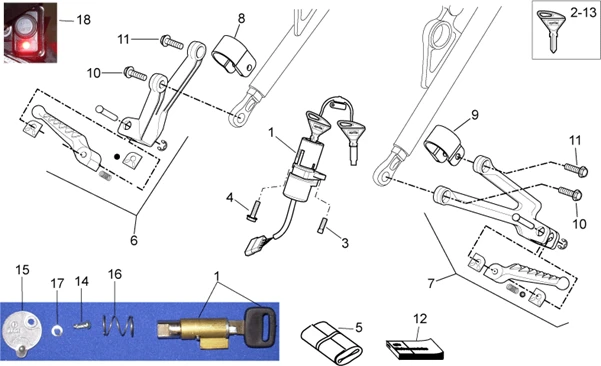

Chassis : 28.33 GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/641/SXV_450_2008_28.33.PNG)
1 |
Bloc démarreur-bloc |
||||||
|
1 |
855128-BODY LOCK More informationQuantity required : 1 |
||||||
|
1 |
85182R - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
2 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 50-125 RS, SX, RX-AP8140710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
3 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
4 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 1 |
||||||
|
5 |
AP9100936 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
6 |
AP9100757-ASS. PEDANA DX PASSEGGERO More informationQuantity required : 1 |
||||||
|
7 |
AP9100756-ASS. PEDANA SX PASSEGGERO More informationQuantity required : 1 |
||||||
|
8 |
851364 - SUPPORT More informationQuantity required : 1 |
||||||
|
9 |
851363 - SUPPORT More informationQuantity required : 1 |
||||||
|
10 |
AP9100837-SCREW TE M10X1. 25-L: 36 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
11 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
|
12 |
|
||||||
|
12 |
|
||||||
|
13 |
859999-CLE More informationQuantity required : 1 |
||||||
|
14 |
855129-RIVET More informationQuantity required : 1 |
||||||
|
15 |
855131-COVER More informationQuantity required : 1 |
||||||
|
16 |
855132-SPRING More informationQuantity required : 1 |
||||||
|
17 |
856912-WASHER More informationQuantity required : 1 |
||||||
|
18 |
855042 - INTERRUPTEUR STOP More informationQuantity required : 1 |
