Vehicle Exploded View - APRILIA SXV 450 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

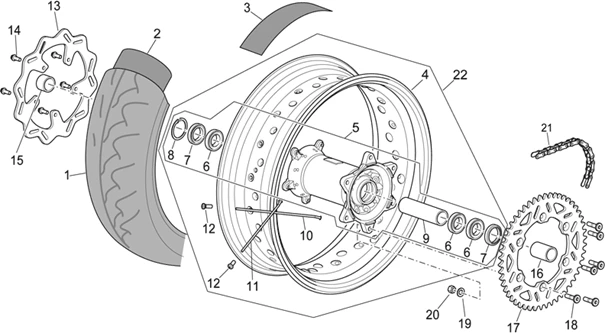

Chassis : 28.25 ROUE ARRIÈRE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/641/SXV_450_2008_28.25.PNG)
1 |
AP9100608 - PNEUMATICO POST.180/55 17" More informationQuantity required : 1 |
||||||
|
2 |
AP9100526 - CAMERA D'ARIA 17" More informationQuantity required : 1 |
||||||
|
3 |
AP9100527 - GUARNIZIONE PROT.CAMERA ARIA17 More informationQuantity required : 1 |
||||||
|
4 |
AP9100560 - CERCHIO RUOTA POST. 5,5X17" More informationQuantity required : 1 |
||||||
|
5 |
AP9100322 - ASSIEME MOZZO RUOTA POSTERIORE More informationQuantity required : 1 |
||||||
|
6 |
831615-BEARING More informationQuantity required : 3 |
||||||
|
7 |
AP9100227 - ANELLO DI TENUTA D.32 D.42 SP7 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/7/img/97067.jpg)
8 |
CLIPS/CIRCLIPS D42 OEM PIAGGIO COMMON A LA RANGE-AP8121334 More informationQuantity required : 1 |
||||||
|
9 |
AP9100584-SPACER INTERNO L: 134, 3 More informationQuantity required : 1 |
||||||
|
10 |
Rayon |
||||||
|
11 |
AP9101056-SPOKE D4 17''L: 180 More informationQuantity required : 18 |
||||||
|
12 |
AP9100569-NIPPLO D. 4 More informationQuantity required : 36 |
||||||
|
13 |
AP9100466-DISCO BRAKE POST. FISSO D. 240 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/7/5/img/97375.jpg)
15 |
SPACER EXTERNE DE REAR WHEEL OEM APRILIA 450-550 RXV, SXV-AP9100595 More informationQuantity required : 1 |
||||||
|
16 |
AP9100596-SPACER EST. WHEEL P. SP45. 1 More informationQuantity required : 1 |
||||||
|
17 |
AP9100334-CORONA DENTATA Z: 46 More informationQuantity required : 1 |
||||||
|
18 |
AP9100467-SCREW FISSAGGIO CORONA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
19 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 6 |
||||||
|
20 |
AP9100432 - DADO AUTOBL.BASSO M8X1.25 More informationQuantity required : 6 |
||||||
|
21 |
AP9100715 - CATENA COMPLETA CHIUSA 112 M. More informationQuantity required : 1 |
||||||
|
22 |
851066 - ROUE AR More informationQuantity required : 1 |
