Vehicle Exploded View - APRILIA SXV 450 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

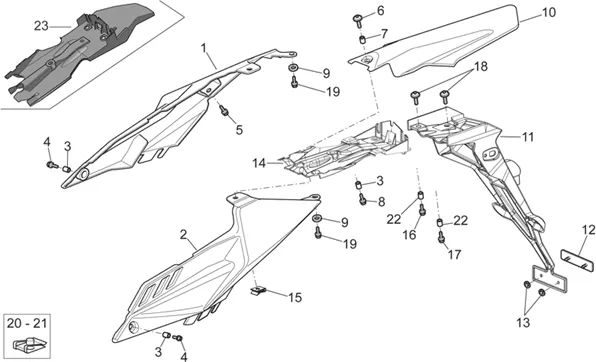

Chassis : 28.15 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/641/SXV_450_2008_28.15.PNG)
1 |
AP8184511 - QUEUE More informationQuantity required : 1 |
||||||
|
1 |
AP8184513 - QUEUE More informationQuantity required : 1 |
||||||
|
2 |
AP8184510 - QUEUE More informationQuantity required : 1 |
||||||
|
2 |
AP8184512 - QUEUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 3 |
||||||
|
4 |
AP9100645 - VITE TE FLANGIATA M6X16 INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
5 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 1 |
||||||
|
7 |
AP9100594-BUSSOLA COLLETTO D16-D10-SP7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
10 |
AP8156340 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
10 |
AP8156341 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
|
11 |
855041 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
|
12 |
AP8112202 - CATADIOPTRE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
13 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 1 |
||||||
|
14 |
855046-SUPP. DE HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
16 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
|
17 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
18 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
19 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
20 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
|
21 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
22 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 2 |
||||||
|
23 |
855050-DOOR-PLATE More informationQuantity required : 1 |
