Vehicle Exploded View - APRILIA SXR 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

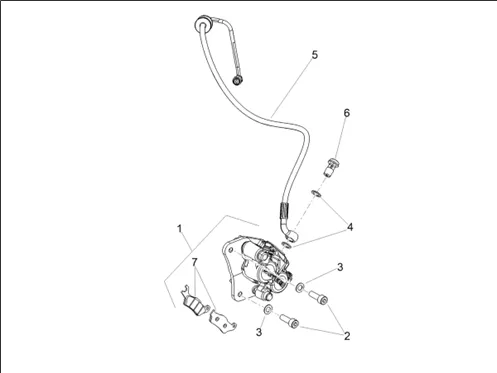

Système de freinage : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_06.02.png)
1 |
BRAKE CALIPER FRONT OEM PIAGGIO 50 SXR APRILIA 2021 >-1C005952R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/0/1/7/img/174017.jpg)
2 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-271596 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
4 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/9/img/178669.jpg)
5 |
HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO 50 SXR APRILIA 2021 >-1C005759 More informationQuantity required : 1 |
||||||
|
6 |
2B011672R-SPECIAL SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/8/img/152908.jpg)
7 |
BRAKE PADS FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > SXR 2021 >-1C002634 More informationQuantity required : 1 |
