Vehicle Exploded View - APRILIA SXR 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

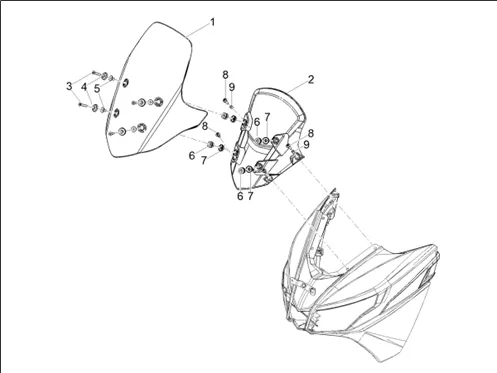

Carrosserie : 02.05 COUPOLE / PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_02.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/9/img/178509.jpg)
1 |
WINDSCREEN OEM PIAGGIO 50 APRILIA SXR 2021 > (MONTE OEM)-1B007724 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/6/0/img/215760.JPG)
2 |
BRACKET WINDSCREEN OEM APRILIA SXR 50 2021 >-1B010558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/1/0/img/178510.jpg)
2 |
BRACKET WINDSCREEN OEM PIAGGIO 50 SXR APRILIA 2021 >-1B007719 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
3 |
SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/4/img/91564.jpg)
4 |
BUSH PROTECTOR-SCREEN OEM PIAGGIO 125-250-300-350-400-500 MP3 2008 > 2014-674070 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/3/img/91563.jpg)
5 |
SPACER DE WINDSCREEN OEM PIAGGIO 125-250-300-350-400-500-530 MP3-674068 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
6 |
GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-576565 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/4/6/img/91646.jpg)
7 |
SPACER DE PROTECTOR-SCREEN OEM PIAGGIO 125-300-400-500 MP3/50 SXR APRILIA 2021 >-674352 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
8 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/4/3/img/88643.jpg)
9 |
SPACER (6, 2X8, 5X8, 8) OEM APRILIA SXR 50 2021 >-655131 More informationQuantity required : 1 |
