Vehicle Exploded View - APRILIA SXR 50 4T 3V E5 HE NEW COMFORT 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

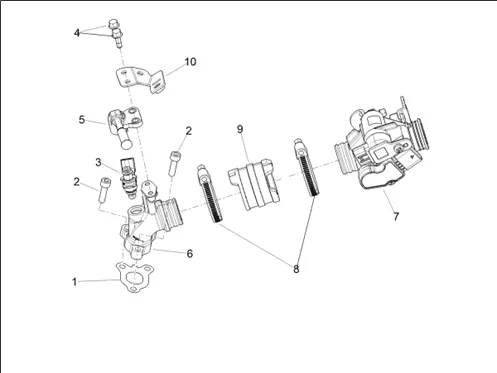

Moteur : 03.06 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1247/SXR_50_4T_3V_E5_HE_NEW_COMFORT_2021-2023_(EMEA)_03.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/0/5/img/178605.jpg)
1 |
GASKET FITTING INTAKE OEM PIAGGIO 50 SXR APRILIA 2021 >-1A019133 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/7/img/152747.jpg)
2 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-1A011416 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/7/4/img/127574.jpg)
3 |
INJECTEUR OEM PIAGGIO 50-125 LIBERTY, PRIMAVERA, SPRINT IGET 3 SOUPAPES-1D000698 More informationQuantity required : 1 |
||||||
4 |
1A015812 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/0/6/img/178606.jpg)
5 |
BRACKET INJECTEUR OEM PIAGGIO 50 SXR APRILIA 2021 >-1A015303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/0/7/img/178607.jpg)
6 |
FITTING INTAKE OEM PIAGGIO 50 SXR APRILIA 2021 >-1A019037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/0/8/img/178608.jpg)
7 |
BODY THROTTLE BODY OEM PIAGGIO 50 SXR APRILIA 2021 >-1A020459 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
8 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/0/6/img/174706.jpg)
9 |
SLEEVE DE RACCORDEMENT HOUSING THROTTLE BODY OEM PIAGGIO 50 4T LIBERTY, PRIMAVERA, SPRINT, ZIP, SXR 2020 >-1A016238 More informationQuantity required : 1 |
||||||
|
10 |
1B008930 FUEL MANIFOLD BRACKET WHIT IP More informationQuantity required : 1 |
