Vehicle Exploded View - APRILIA SX 50 E4 2018-2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

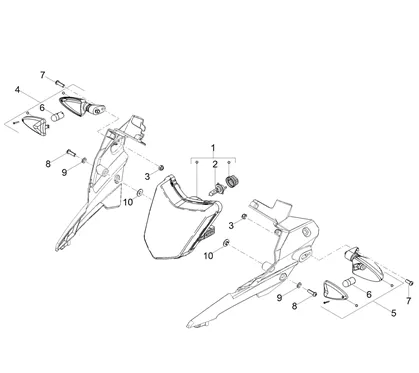

Feux - instruments : 08.01 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/992/SX_50_E4_2018-2019-2020_(EMEA)_08.01.png)
1 |
859702-HEADLAMP FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/1/2/img/96512.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA 50 RX, SX 2014 >, 125 RX, SX 2008 > 2010, 450-550 RXV, SXV 2008 > 2011-855038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
2 |
AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/5/img/71625.jpg)
4 |
INDICATOR AVD/ARG OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >, 450-550 RXV, SXV 2008 > 2011-AP8127783 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/6/img/71626.jpg)
5 |
INDICATOR AVG/ARD OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >, 450-550 RXV, SXV 2008 > 2011-AP8127784 More informationQuantity required : 1 |
||||||
|
6 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
9 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
10 |
WASHER EN T (6) OEM PIAGGIO COMMIN A LA RANGE-AP8121991 More informationQuantity required : 2 |
