Vehicle Exploded View - APRILIA SX 50 E4 2018-2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

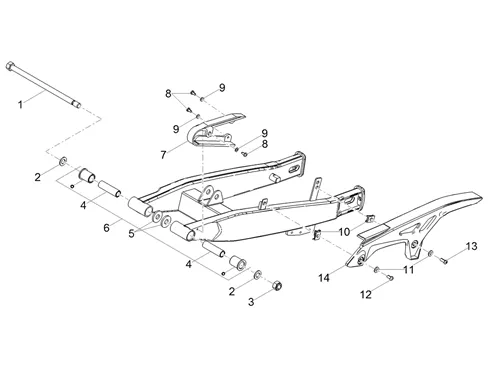

Chassis : 01.05 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/992/SX_50_E4_2018-2019-2020_(EMEA)_01.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/4/img/64484.jpg)
1 |
WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
2 |
WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/8/img/63768.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M12X1. 50) OEM PIAGGIO COMMON A LA RANGE-00262120032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/7/img/64217.jpg)
4 |
SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00301401 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/9/img/63879.jpg)
5 |
WASHER PLATE D12 SPINDLE ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00D01300192 More informationQuantity required : 2 |
||||||
6 |
2B004345500XHE - FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/0/img/64620.jpg)
7 |
PATIN DE CHAIN 50 A BOX OEM PIAGGIO GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX-RX 2006 >-00H01803331 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
8 |
SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
9 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
11 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
13 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/7/img/64557.jpg)
14 |
COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181 More informationQuantity required : 1 |
